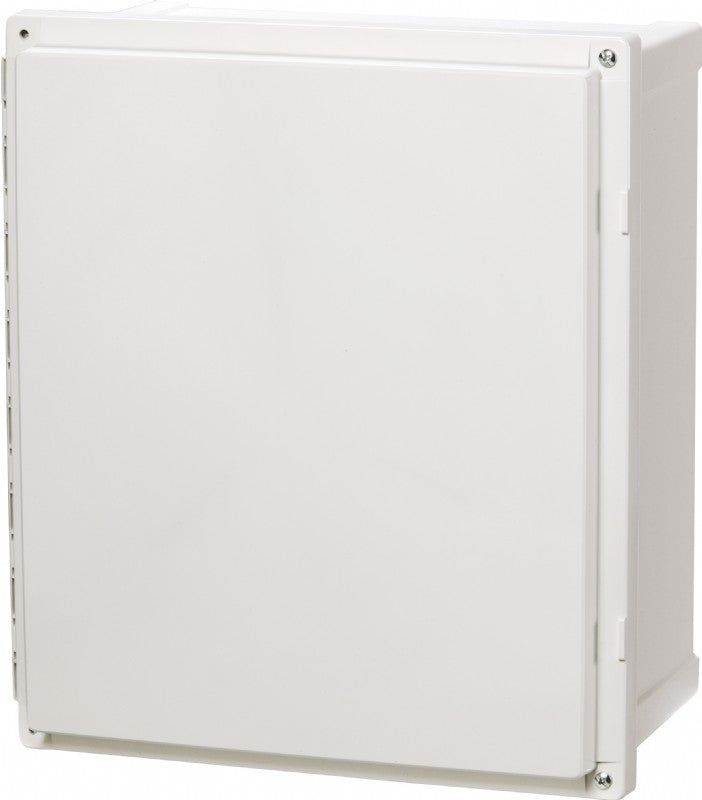

Home / 8561006 - 6 x 6 x 4 Inch PC Enclosure, Hinged Opaque Raised Screw cover
1 1

8561006 - 6 x 6 x 4 Inch PC Enclosure, Hinged Opaque Raised Screw cover

8561006 - 6 x 6 x 4 Inch PC Enclosure, Hinged Opaque Raised Screw cover

SKU: AR664CHSC Download PDF

Now $11,666.00
BEFORE   Now $11,666.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

This enclosure is designed with dimensions of 6 x 6 x 4 inches and features a hinged opaque raised screw cover It is suitable for various installations and applications and offers significant protection against environmental factors.

Features and Benefits:

    •Hinged screw cover for easy access.

    •Base with 10-32 brass inserts.

    •Formed in place PUR gasket for enhanced sealing.

    •Stainless hinge pin and cover screws included.

    •Accessory 10-32 screws for panel mounting.

Specifications:

 Dimensions (inch) 6 x 6 x 4
 Height (mm) 152.4
 Width (mm) 152.4
 Depth (mm) 101.6
 Material Polycarbonate
 Base Color RAL 7035 -light grey
 Cover Color RAL 7035 -light grey
 Gasket Material Polyurethane
 Temperature (°F) -40 … 175
 Temperature (°C) -40 … 80
 UL/cUL Type UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
 Ingress Protection (EN 60529) IP66; IP67
 Impact Resistance (EN 62262) IK09
 Electrical Insulation Fully insulated
 Halogen Free Yes
 UV Resistance UL 508
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test 960 °C
