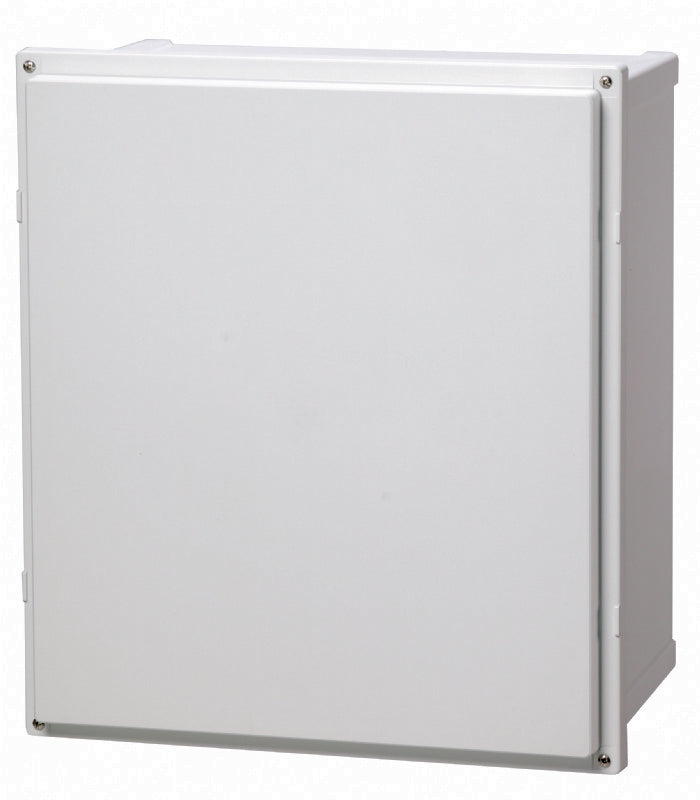

8561004 12 x 10 x 6 Inch PC Enclosure Raised Opaque Screw Cover

8561004 12 x 10 x 6 Inch PC Enclosure Raised Opaque Screw Cover

SKU: AR12106SC Download PDF

Now $15,425.00
BEFORE   Now $15,425.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

The 12 x 10 x 6 Inch PC Enclosure is a raised opaque screw cover made from polycarbonate, designed for rigorous environmental conditions It features screw cover design with a base that has 10-32 brass inserts, and a cover equipped with a formed in place PUR gasket to ensure a robust seal Included are stainless cover screws along with an enclosure mounting foot kit and accessory screws for panel mounting.

This enclosure is suitable for various applications in electrical and electronic equipment housing.

Features and Benefits:

    •IP66 and IP67 rated protection against dust and water ingress.

    •Constructed from durable polycarbonate material.

    •Impact resistance classified as IK09.

    •Temperature resilience from -40 to 175 °F.

    •Fully insulated and halogen-free design.

    •UV resistant with UL 508 specification compliance.

    •Flammability rating of UL94-5VA (f1) enhances safety.

Specifications:

 Dimensions (Height x Width x Depth): 12 x 10 x 6 inches
 Materials: Polycarbonate
 Base Color: RAL 7035 - light grey
 Cover Color: RAL 7035 - light grey
 Gasket Material: Polyurethane
 UL/cUL Type: UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
 Ingress Protection: IP66; IP67
 Impact Resistance: IK09
 Temperature (Continuous): -40 … 80 °C
 Electrical Insulation: Fully insulated
 Halogen Free: Yes
 UV Resistance: UL 508
 Flammability Rating: UL94-5VA (f1)
 Glow Wire Test: 960 °C
