8561002 8 x 6 x 5 Inch PC Enclosure Raised Opaque Screw Cover

8561002 8 x 6 x 5 Inch PC Enclosure Raised Opaque Screw Cover

SKU: AR865SC Download PDF

Now $10,880.00
BEFORE   Now $10,880.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

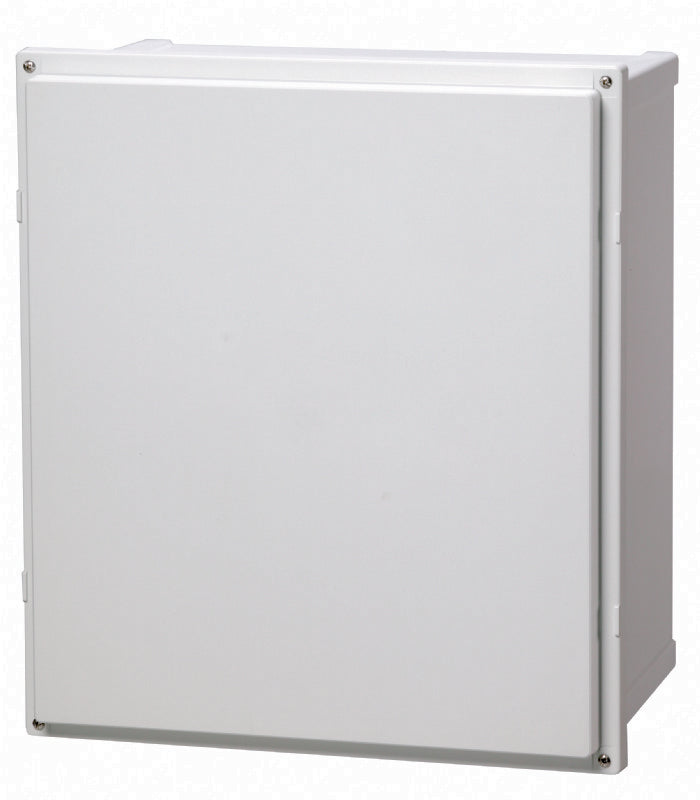

This product is an 8 x 6 x 5 inch PC enclosure with a raised opaque screw cover It includes a screw cover, a base with 10-32 brass inserts, and a cover featuring a formed-in-place PUR gasket along with four stainless cover screws An enclosure mounting foot kit and accessory 10-32 screws for panel mounting are also included The design is tailored to be compliant with various standards such as UL Type NEMA 4, 4X, 6, 6P, 12, 12K, and 13, and boasts an ingress protection rating of IP66 and IP67, as well as impact resistance of IK09.

Features and Benefits:

    •Constructed from durable polycarbonate material.

    •Light grey base and cover in RAL 7035.

    •Capable of withstanding a temperature range from -40 to 175°F (-40 to 80°C).

    •Complies with UL/cUL 4, 4X, 6, 6P, 12, 12K and 13 ratings.

    •Fully insulated for electrical safety.

    •Halogen free and UV resistant.

    •Meets flammability rating of UL94-5VA (f1).

    •Glow wire tested at 960 °C.

Specifications:

 Dimensions (inches) 8 x 6 x 5
 Dimensions (mm) 203.2 x 152.4 x 127
 Material Polycarbonate
 Ingress Protection (EN 60529) IP66; IP67
 Impact Resistance (EN 62262) IK09
 Electrical Insulation Fully insulated
 Halogen Free Yes
 UV Resistance UL 508
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test (IEC 60695) 960 °C
