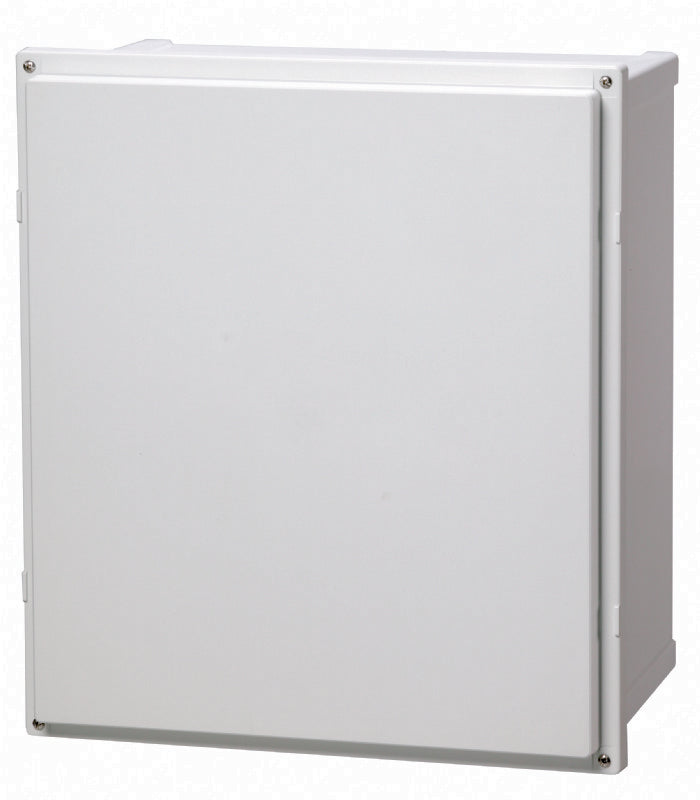

8561001 6 x 6 x 4 Inch PC Enclosure Raised Opaque Screw Cover

8561001 6 x 6 x 4 Inch PC Enclosure Raised Opaque Screw Cover

SKU: AR664SC Download PDF

Now $10,310.00
BEFORE   Now $10,310.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

The 6 x 6 x 4 Inch PC Enclosure features a raised opaque screw cover designed for durability and protection This enclosure is constructed with a screw cover and a base equipped with 10-32 brass inserts It includes a formed in place PUR gasket and four stainless cover screws, providing added resistance to environmental factors It is suitable for a range of applications where protection from dust and moisture is necessary, complying with various UL types and ingress protection ratings.

Features and Benefits:

    •Constructed from durable polycarbonate material.

    •IP66 and IP67 rated for dust and water resistance.

    •Impact resistance classified as IK09.

    •Equipped with a formed in place PUR gasket for secure sealing.

    •Compliant with UL/cUL ratings 4, 4X, 6, 6P, 12, 12K and 13.

    •Temperature range from -40 to 175 °F.

    •UV resistant and halogen-free.

Specifications:

 Dimensions: 6 x 6 x 4 inches (152.4 x 152.4 x 101.6 mm)
 Material: Polycarbonate
 Base color: RAL 7035 - light grey
 Cover color: RAL 7035 - light grey
 Gasket material: Polyurethane
 Temperature (continuous): -40 … 175 °F (-40 … 80 °C)
 Ingress Protection: IP66; IP67
 Impact Resistance: IK09
 Electrical insulation: Fully insulated
 Halogen free: Yes
 UV resistance: UL 508
 Flammability Rating: UL94-5VA (f1)
 Glow Wire Test: 960 °C
