8537260000 - 9-Pole D-Sub Connector with Tension-Clamp Secure Connection

8537260000 - 9-Pole D-Sub Connector with Tension-Clamp Secure Connection

SKU: 8537260000 Download PDF

Variant:
  • 8537260000 - 9-Pole D-Sub Connector with Tension-Clamp Secure Connection
Now $46.10
BEFORE   $0.00 Now $46.10
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the RS SD9 SZ D-sub connector interface, crafted to meet the IEC 60807 and DIN 41652 standards This 9-pole plug boasts a reliable tension-clamp connection for a stable and secure performance With ROHS compliance and UL certification (E141197), this connector is engineered for versatility across various operational settings.

Features and Benefits:

    •Tension-clamp connection.

    •9-pole plug design.

    •Compliant with IEC and DIN standards.

    •ROHS compliant.

Specifications:

 Depth 64 mm, 2.52 inch
 Height 87 mm, 3.425 inch
 Width 45 mm, 1.772 inch
 Storage temperature -40...70 °C
 Operating temperature 0...55 °C
 Rated current 1 A
 Rated voltage 100 V

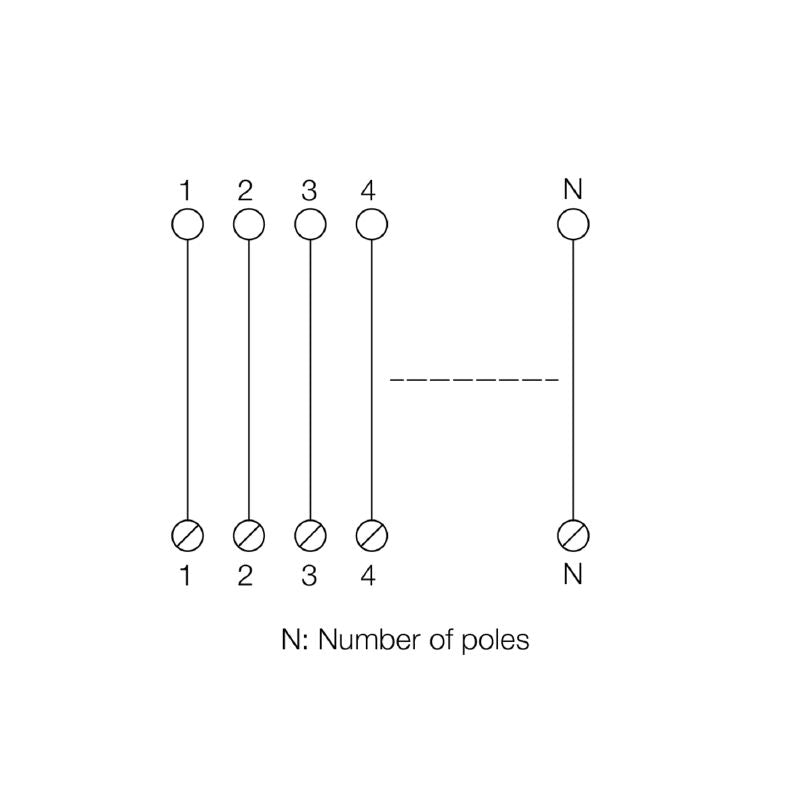

 Number of poles 9-pole plug
 Rated voltage UL 100 V
 Rated current per connection 1.5 A
 Stripping length 7.5 mm
 Connection field Tension-clamp connection
 Surge voltage category II
 Pollution severity level 2
 Max wire cross-section AWG 14
 Min wire cross-section AWG 24
