8537140000 - 40-Pole Plug-in Connector, IEC Compliant, Tension-Clamp Design

8537140000 - 40-Pole Plug-in Connector, IEC Compliant, Tension-Clamp Design

SKU: 8537140000 Download PDF

Variant:
  • 8537140000 - 40-Pole Plug-in Connector, IEC Compliant, Tension-Clamp Design
Now $65.56
BEFORE   $0.00 Now $65.56
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

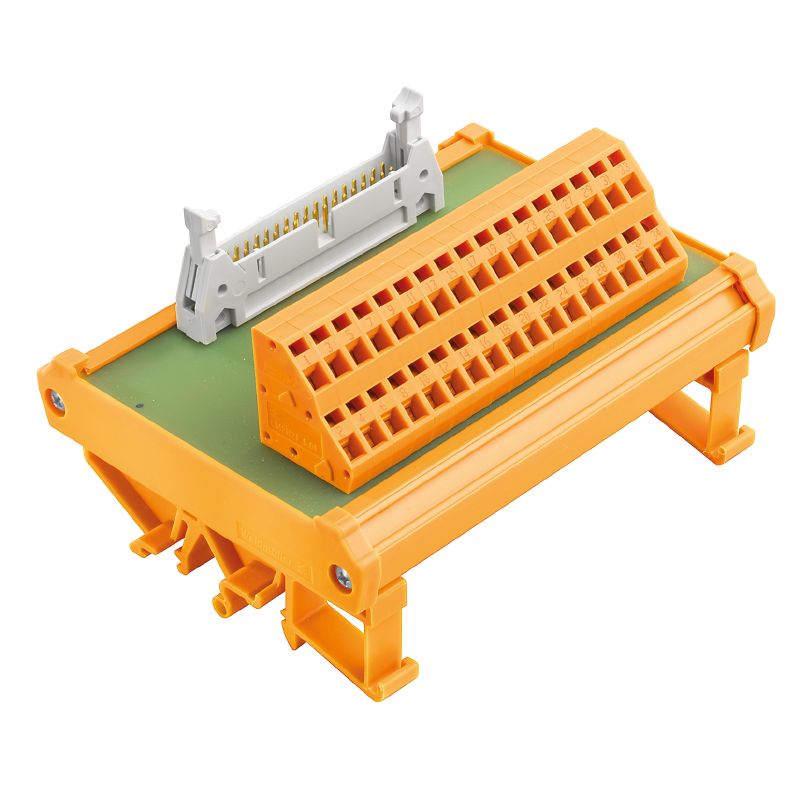

Introducing the RS F40 Z plug-in connector, meticulously crafted to meet IEC60603-13 / DIN41651 standards This 40-pole connector utilizes a tension-clamp connection system for secure performance It holds a UL approval and adheres to RoHS regulations without any exemptions, complete with a detailed UL file number for your assurance Its dimensions are 115 mm in width, 64 mm in depth, and 87 mm in height, with a weight of 198 grams.

Designed to operate efficiently within a temperature range of 0 to 55 °C, it’s perfect for a variety of applications.

Features and Benefits:

    •Compliant with RoHS and REACH regulations.

    •Tension-clamp connection for secure fittings.

    •UL certified with specified operating temperatures.

Specifications:

 Depth 64 mm
 Depth (inches) 2.52 inch
 Height 87 mm
 Height (inches) 3.425 inch
 Width 115 mm
 Width (inches) 4.528 inch
 Net weight 198 g
 Storage temperature -40...70 °C
 Operating temperature 0...55 °C
 Rated current I N 1 A
 Rated voltage U N ≤ 60 V AC / 75 V DC
 Connection (field side) LM2NZF 5.08mm
 Connection on control side Plug-in connector in acc. with IEC60603-13 / DIN41651

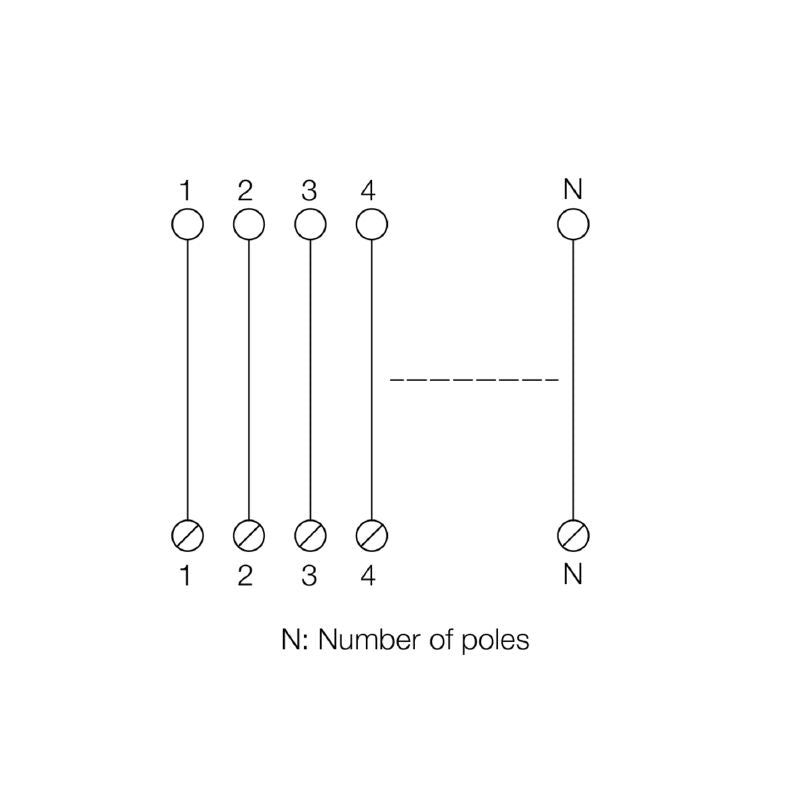

 Number of poles (control side) 40-pole
 Rated voltage 60 V AC / 75 V DC
 Rated current per connection 1 A
 Rated insulation voltage 100 V
 Surge voltage category II
 Pollution severity level 2
 Pulse voltage test (1,2/50μs) 0.8 kV
 Clamping range, max 2.5 mm²
 Clamping range, min 0.13 mm²
 Flexible with sleeve, max 1.5 mm²
 Flexible with sleeve, min 0.25 mm²
 Flexible, max. H05(07) V-K 1.5 mm²
 Flexible, min. H05(07) V-K 0.2 mm²
 Max. wire cross-section, AWG AWG 14
 Min. wire cross-section, AWG AWG 24
 Sleeve with plastic collar, max 1.5 mm²
 Solid, max. H05(07) V-U 2.5 mm²
 Solid, min. H05(07) V-U 0.2 mm²
 Stripping length 7.5 mm
 Type of connection Tension-clamp connection
