8431000000 - RoHS-Compliant Tension-Clamp Component for Efficient Performance

8431000000 - RoHS-Compliant Tension-Clamp Component for Efficient Performance

SKU: 8431000000 Download PDF

Variant:
  • 8431000000 - RoHS-Compliant Tension-Clamp Component for Efficient Performance
Now $582.49
BEFORE   $0.00 Now $582.49
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

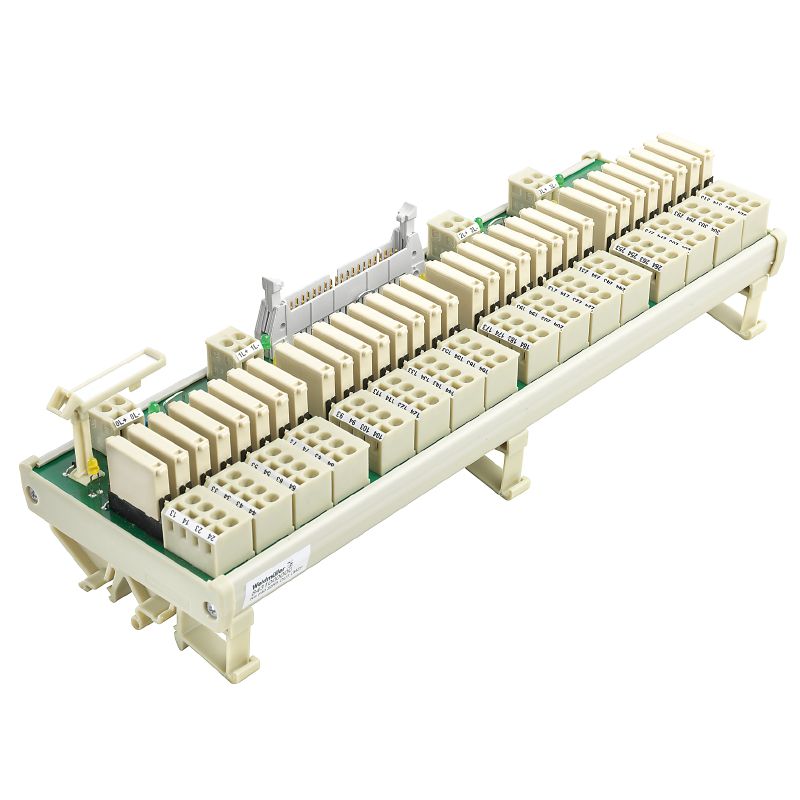

Introducing the RS F40 32RS OUT LMZF component, expertly designed for optimal performance while adhering to RoHS standards Featuring a reliable tension-clamp connection, this unit is recognized by the model FUJITSU NYP-24WK Please note that this item is discontinued Additionally, it comes with essential ordering details and a GTIN code of 4008190032753 Comprehensive environmental compliance documentation is included, highlighting its RoHS status, REACH SVHC, and SCIP ID for your peace of mind.

Features and Benefits:

    •LED status display per relay in green.

    •LED status of the supply voltage in yellow.

    •Power supply fuse is not included.

Specifications:

 Depth 73 mm
 Height 87 mm
 Width 263 mm
 Storage temperature -40...70 °C
 Operating temperature 0...55 °C
 Number of poles (control side) 40-pole
 Input voltage 24 V DC ± 10%
 Input current 5 mA ± 15%
 Power rating 0.5 W
 Min. switching current 10 mA
 Relay type FUJITSU NYP-24WK
 Type of output Potential-free contact
 Material of contacts AgNi gold flashed
 Max. AC continuous current 3 A
 AC peak current 5 A
 Minimum contact current 0.0001 A
 Minimum contact voltage 0.1 V
 Rated input insulation voltage < 50 V AC
 Rated output insulation voltage < 250 V AC
 Overvoltage category input/input II
 Overvoltage category input/output II
 Overvoltage category output/output II
 Pollution severity level 2
 Pulse voltage test (1,2/50μs) 2 kV
 Insulation test voltage AC 4 kV
 Clearance input/output ≥ 7 mm
 Clamping range, max. 1.5 mm²
 Clamping range, min. 0.5 mm²
 Wire cross-section, max. AWG AWG 14
 Wire cross-section, min. AWG AWG 26
 Stripping length 7 mm
