8143332 UL CAB PC 302018 G3B
8143332 UL CAB PC 302018 G3B
SKU: SKU: UL CAB PC 302018 G3B
Regular price
Now $21,935.00
Regular price
BEFORE
Sale price
Now $21,935.00
Unit price
per
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
Couldn't load pickup availability
Product Information
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

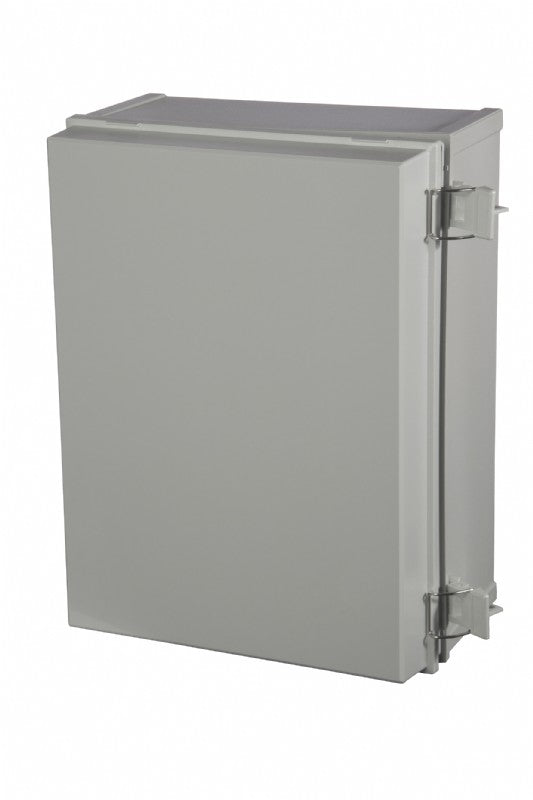

118 x 79 x 71 inch polycarbonate enclosure with an opaque door, Locks long side with 3mm double bit lock(s) with key.
Specifications:
| Dimensions (inches) | 11.8 x 7.9 x 7.1 |
| Dimensions (mm) | 300 x 200 x 180 |
| Material | Polycarbonate |
| Base color | RAL 7035 -light grey |
| Cover color | RAL 7035 -light grey |
| Gasket material | Polyurethane |
| Temperature (°F) | -40 … 175 |
| Temperature (°C) | -40 … 80 |
| UL/cUL Type | Type 1, 4, 4X, 12, and 13 |
| Ingress Protection (EN 60529) | IP65 |
| Impact Resistance (EN 62262) | IK08 |
| Electrical insulation | Totally insulated |
| Halogen free | No |
| UV resistance | UL 508 |
| Flammability Rating | UL94-5VA (f1)/ Cover: UL94-V0 (f1) |
| Glow Wire Test (IEC 60695) | 960 °C |
