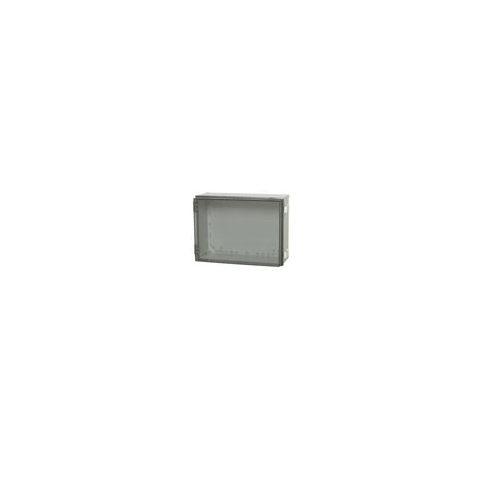

8143061 Polycarbonate Enclosure with Smoked Transparent Door
8143061 Polycarbonate Enclosure with Smoked Transparent Door
SKU: SKU: UL CAB PC 405020 T
Qty:
Unit price
per
Sold out
Shipping calculated at checkout.
IN STOCK Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
Description:
157 x 197 x 79 inch polycarbonate enclosure with a Smoked transparent door, and latches on the short side including cabinet base, door with PUR gasket, latches, screws for mounting plate/DIN-rail and corner plugs.
Features and Benefits:
•Polycarbonate construction for durability and strength.
•Ingress Protection rating of IP65 for dust and water resistance.
•Impact Resistance rated IK08 for increased durability.
•Wide temperature range of -40 to 175 °F for versatile applications.
•UL/cUL Type ratings of Type 1, 4, 4X, 12, and 13.
•Totally insulated for electrical safety.
Specifications:
| Dimensions (inches) | 15.7 x 19.7 x 7.9 |
| Dimensions (mm) | 400 x 500 x 200 |
| Material | Polycarbonate |
| Base color | RAL 7035 - light grey |
| Cover color | Transparent |
| Gasket material | Polyurethane |
| Temperature (°F) | -40 to 175 |
| Temperature (°C) | -40 to 80 |
| UL/cUL Type | Type 1, 4, 4X, 12, and 13 |
| Ingress Protection | IP65 |
| Impact Resistance | IK08 |
| Electrical insulation | Totally insulated |
| Halogen free | No |
| UV resistance | UL 508 |
| Flammability Rating | UL94-5VA (f1)/ Cover: UL94-V0 (f1) |
| Glow Wire Test | 960 °C |
