8143042 Polycarbonate Enclosure with Smoked Transparent Door
8143042 Polycarbonate Enclosure with Smoked Transparent Door
SKU: SKU: UL CAB PC 303018 T3B
Qty:
Unit price
per
Sold out
Shipping calculated at checkout.
IN STOCK Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
Description:

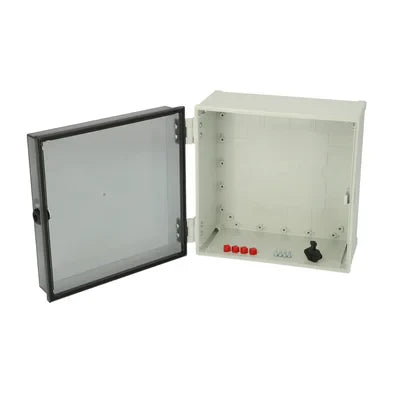

118 x 118 x 71 inch polycarbonate enclosure with a Smoked transparent door, Locks long side.
Features and Benefits:
•Cabinet base, door with PUR gasket, latches, screws for mounting plate/DIN-rail and corner plugs.
•UL Type Type 1, 4, 4X, 12, and 13.
•IP65 rated.
•IK08 impact resistance.
•Totally insulated.
•UV resistant.
Specifications:
| Dimensions (inch) | 11.8 x 11.8 x 7.1 |
| Dimensions (mm) | 300 x 300 x 180 |
| Material | Polycarbonate |
| Base color | RAL 7035 -light grey |
| Cover color | Transparent |
| Gasket material | Polyurethane |
| Temperature (°F) | -40 … 175 |
| Temperature (°C) | -40 … 80 |
| UL/cUL Type | Type 1, 4, 4X, 12, and 13 |
| Ingress Protection | IP65 |
| Impact Resistance | IK08 |
| Electrical insulation | Totally insulated |
| Halogen free | No |
| UV resistance | UL 508 |
| Flammability Rating | UL94-5VA (f1)/ Cover: UL94-V0 (f1) |
| Glow Wire Test | 960 °C |
