8143032 UL CAB PC 302018 T3B
8143032 UL CAB PC 302018 T3B
SKU: SKU: UL CAB PC 302018 T3B
Qty:
Unit price
per
Sold out
Shipping calculated at checkout.
IN STOCK Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
Description:

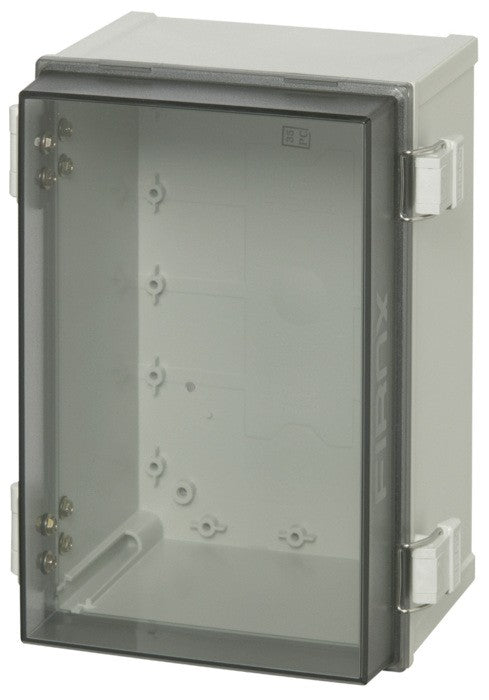

118 x 79 x 71 inch polycarbonate enclosure with a Smoked transparent door, Locks long side.
Features and Benefits:
•UL Type Type 1, 4, 4X, 12, and 13.
•IP65 rating for dust and water protection.
•IK08 impact resistance.
•Includes Cabinet base, door with PUR gasket, latches, screws for mounting plate/DIN-rail and corner plugs..
Specifications:
| Height (inch) | 11.8 |
| Width (inch) | 7.9 |
| Depth (inch) | 7.1 |
| Height (mm) | 300 |
| Width (mm) | 200 |
| Depth (mm) | 180 |
| Material | Polycarbonate |
| Base color | RAL 7035 -light grey |
| Cover color | Transparent |
| Gasket material | Polyurethane |
| Temperature °F (continuous) | -40 … 175 |
| Temperature °C (continuous) | -40 … 80 |
| Ingress Protection (EN 60529) | IP65 |
| Impact Resistance (EN 62262) | IK08 |
| Electrical insulation | Totally insulated |
| Halogen free (DIN/VDE 0472, Part 815) | No |
| UV resistance | UL 508 |
| Flammability Rating | UL94-5VA (f1)/ Cover: UL94-V0 (f1) |
| Glow Wire Test (IEC 60695) | 960 °C |
