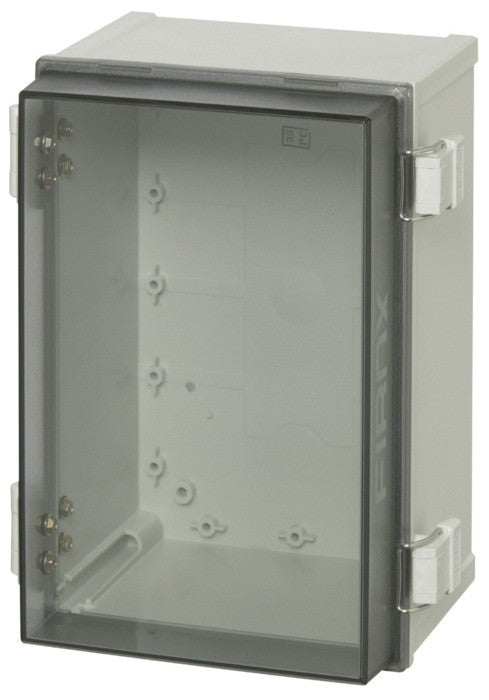

8143030 - UL CAB PC 302018 Polycarbonate Enclosure
8143030 - UL CAB PC 302018 Polycarbonate Enclosure
SKU: SKU: UL CAB PC 302018 T
Qty:
Unit price
per
Sold out
Shipping calculated at checkout.
IN STOCK Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
Description:
The 8143030 is a polycarbonate enclosure measuring 118 x 79 x 71 inches with a smoked transparent door and latches on the long side It includes a cabinet base, door with PUR gasket, latches, screws for mounting plate/DIN-rail, and corner plugs.
Features and Benefits:
•Constructed from durable polycarbonate material.
•Smoked transparent door for visibility.
•Latches on the long side for secure closing.
•IP65 rated for ingress protection.
•IK08 rated for impact resistance.
•UL/cUL Type rated for multiple environments.
•Totally insulated for electrical safety.
Specifications:
| Dimensions Height (inch): | 11.8 |
| Dimensions Width (inch): | 7.9 |
| Dimensions Depth (inch): | 7.1 |
| Dimensions Height (mm): | 300 |
| Dimensions Width (mm): | 200 |
| Dimensions Depth (mm): | 180 |
| Material: | Polycarbonate |
| Base color: | RAL 7035 - light grey |
| Cover color: | Transparent |
| Gasket material: | Polyurethane |
| Temperature °F (continuous): | -40 … 175 |
| Temperature °C (continuous): | -40 … 80 |
| UL/cUL Type: | Type 1, 4, 4X, 12, and 13 |
| Ingress Protection (EN 60529): | IP65 |
| Impact Resistance (EN 62262): | IK08 |
| Electrical insulation: | Totally insulated |
| Halogen free (DIN/VDE 0472, Part 815): | No |
| UV resistance: | UL 508 |
| Flammability Rating: | UL94-5VA (f1)/ Cover: UL94-V0 (f1) |
| Glow Wire Test (IEC 60695): | 960 °C |
