8120031N Cabinet Style, PC
8120031N Cabinet Style, PC
SKU: SKU: ARCA 507030 NO-MP
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

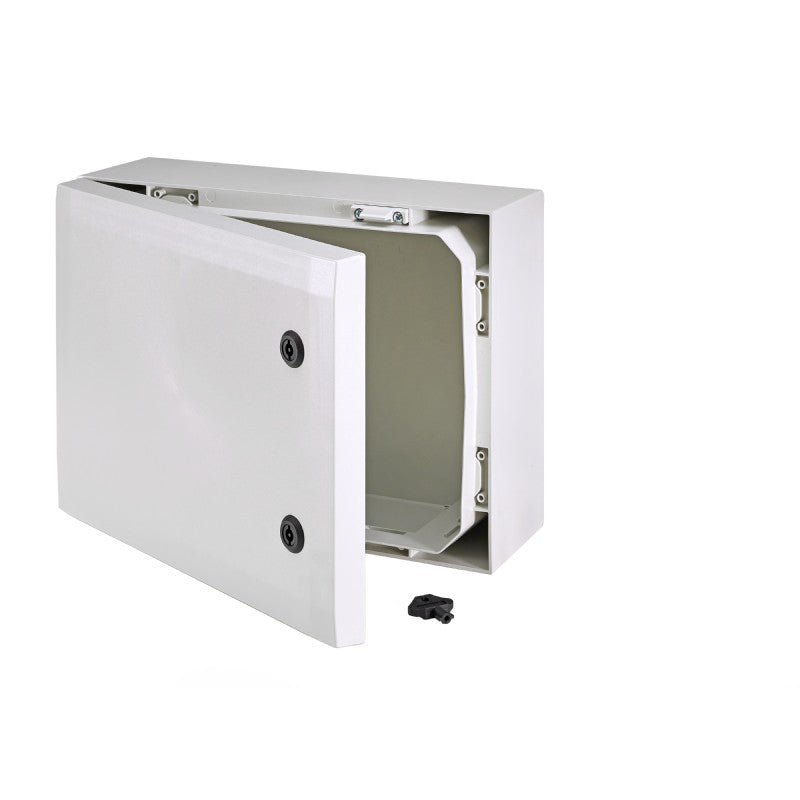

Cabinet Style, PC including a cabinet enclosure with a PUR gasket, 3mm double bit locks with key, screws for mounting, and a door guide This product is designed as an enclosure for various applications, featuring a grey cover with 2-point locking and hinges on the short side.
Features and Benefits:
•Grey cover with 2-point locking.
•Hinges located on the short side.
•UL Type NEMA 1, 4, 4X, 12 and 13 compliance.
•Ingress Protection rating of IP66 for dust and water resistance.
•Impact Resistance rating of IK10.
•Made from polycarbonate materials.
Specifications:
| Dimensions Height (inch) | 19.69 |
| Dimensions Width (inch) | 27.56 |
| Dimensions Depth (inch) | 12.2 |
| Dimensions Height (mm) | 500 |
| Dimensions Width (mm) | 700 |
| Dimensions Depth (mm) | 300 |
| Material | Polycarbonate, PC |
| Base color | RAL 7035 -light grey |
| Cover color | RAL 7035 -light grey |
| Gasket material | Polyurethane (PUR) |
| Temperature °F (continuous) | -40 … 175 |
| Temperature °C (continuous) | -40 … 80 |
| UL/cUL Type | UL/cUL 1, 4, 4X, 12 and 13 |
| Ingress Protection (EN 60529) | IP66 |
| Impact Resistance (EN 62262) | IK10 |
| Electrical insulation | Totally Insulated |
| Halogen free (DIN/VDE 0472, Part 815) | Yes |
| UV resistance | UL 508 |
| Flammability Rating | UL94-5VA (f1) |
| Glow Wire Test (IEC 60695) | 960 °C |
