8120029N Cabinet Style, PC
8120029N Cabinet Style, PC
SKU: SKU: ARCA 608030 NO-MP
Regular price
Now $58,253.00
Regular price
BEFORE
Sale price
Now $58,253.00
Unit price
per
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
Couldn't load pickup availability
Product Information
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

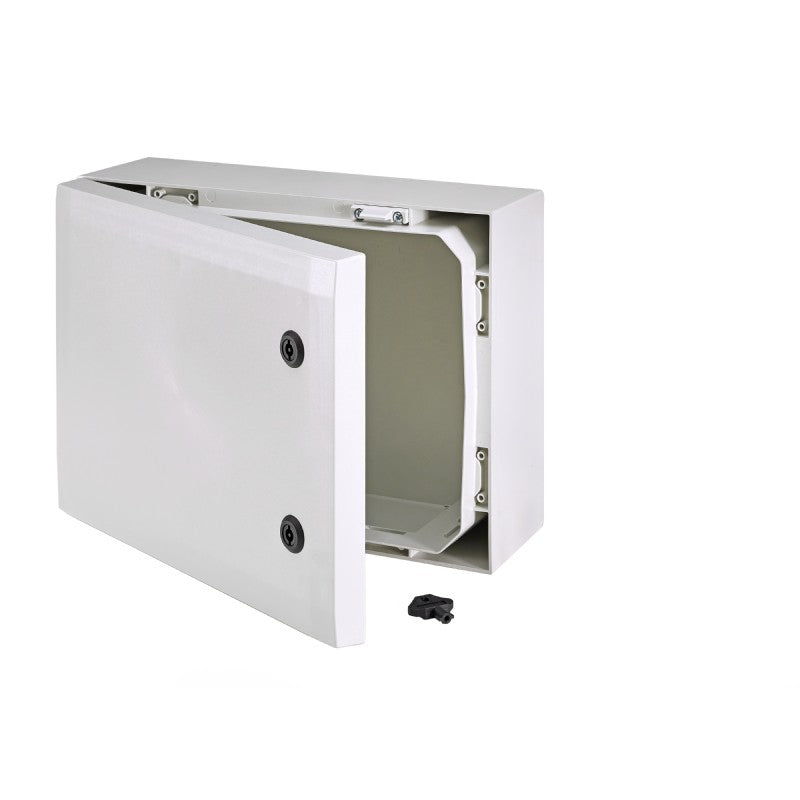

Cabinet Style, PC.
Features and Benefits:
•Grey cover, 2-point locking, hinges on the short side.
Specifications:
| Dimensions: | Height: 26.62 inch, Width: 31.5 inch, Depth: 12.2 inch |
| Height (mm): | 600 |
| Width (mm): | 800 |
| Depth (mm): | 300 |
| Material: | Polycarbonate, PC |
| Base color: | RAL 7035 -light grey |
| Cover color: | RAL 7035 -light grey |
| Gasket material: | Polyurethane (PUR) |
| Temperature °F (continuous): | -40 … 175 |
| Temperature °C (continuous): | -40 … 80 |
| UL/cUL Type: | 1, 4, 4X, 12 and 13: UL 1741 |
| Ingress Protection (EN 60529): | IP66 |
| Impact Resistance (EN 62262): | IK10 |
| Electrical insulation: | Totally Insulated |
| Halogen free (DIN/VDE 0472, Part 815): | Yes |
| UV resistance: | UL 508 |
| Flammability Rating: | UL94-5VA (f1) |
| Glow Wire Test (IEC 60695): | 960 °C |
