8120026N Cabinet Style, PC
8120026N Cabinet Style, PC
SKU: SKU: ARCA 406021 NO-MP
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

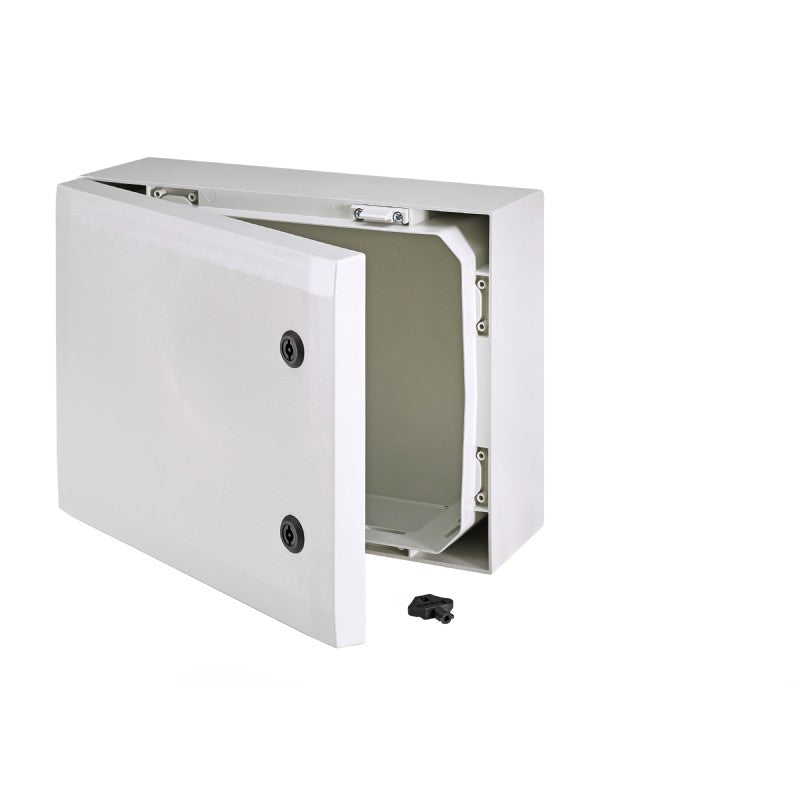

Cabinet Style, PC enclosure featuring a grey cover with 2-point locking and hinges on the short side It includes a cabinet enclosure with a PUR gasket, 3mm double bit lock(s) with key, screws for mounting, and a door guide Dimensions are 1574 x 2362 x 826 inches (400 x 600 x 210 mm) This enclosure is designed for a variety of applications, complying with UL Type NEMA ratings and providing strong protection against harsh environments.
Features and Benefits:
•UL Type NEMA 1, 4, 4X, 12 and 13 compliant.
•Ingress protection rating of IP66.
•Impact resistance rating of IK10.
•Totally insulated for electrical safety.
•Halogen-free materials.
•UV resistance and flammability rating of UL94-5VA (f1).
Specifications:
| Dimensions (Height x Width x Depth): | 15.74 x 23.62 x 8.26 inches or 400 x 600 x 210 mm |
| Material: | Polycarbonate, PC |
| Base color: | RAL 7035 - light grey |
| Cover color: | RAL 7035 - light grey |
| Gasket material: | Polyurethane (PUR) |
| Temperature (Fahrenheit): | -40 … 175 |
| Temperature (Celsius): | -40 … 80 |
| UL/cUL Type: | UL/cUL 1, 4, 4X, 12 and 13 |
| Ingress Protection (EN 60529): | IP66 |
| Impact Resistance (EN 62262): | IK10 |
| Electrical insulation: | Totally Insulated |
| Halogen free (DIN/VDE 0472, Part 815): | Yes |
| UV resistance: | UL 508 |
| Flammability Rating: | UL94-5VA (f1) |
| Glow Wire Test (IEC 60695): | 960 °C |
