8120025N Cabinet Style, PC
8120025N Cabinet Style, PC
SKU: SKU: ARCA 405021 NO-MP
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

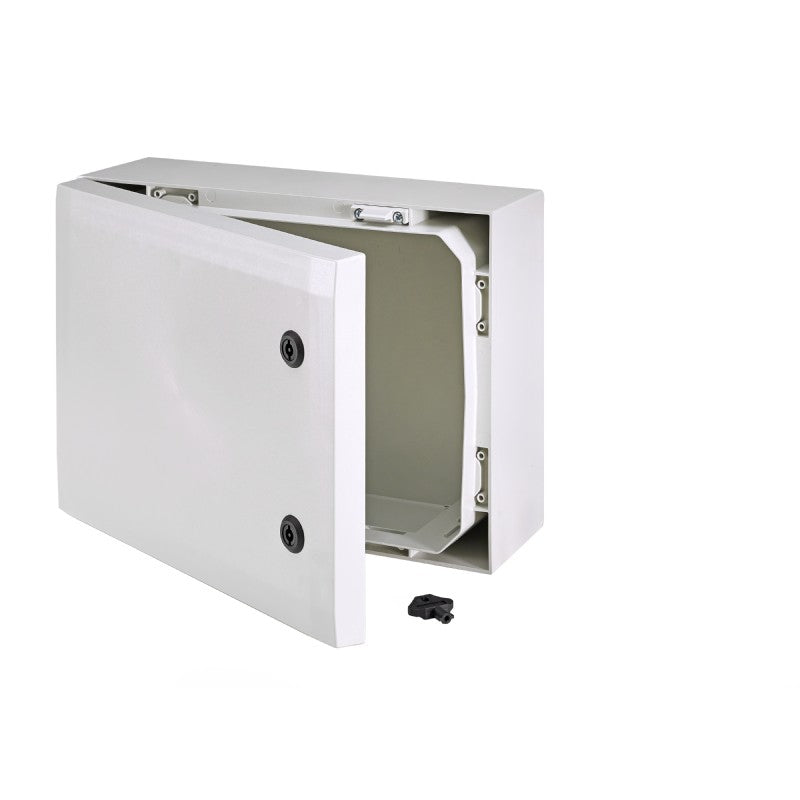

Cabinet Style, PC The enclosure comes with a grey cover, features a 2-point locking mechanism, and is equipped with hinges on the short side It includes a cabinet enclosure with a polyurethane (PUR) gasket, 3mm double bit lock with key, screws for mounting, and a door guide Suitable for various applications and complies with UL/cUL ratings.
Features and Benefits:
•UL Type NEMA 1, 4, 4X, 12 and 13.
•Ingress Protection (EN 60529): IP66.
•Impact Resistance (EN 62262): IK10.
•Constructed from Polycarbonate (PC).
•Halogen free.
•Totally Insulated.
•UV resistance according to UL 508.
•Flammability Rating: UL94-5VA (f1).
•Glow Wire Test: 960 °C.
Specifications:
| Dimensions (inch) | 15.75 x 19.69 x 8.58 |
| Dimensions (mm) | 400 x 500 x 210 |
| Material | Polycarbonate, PC |
| Base color | RAL 7035 -light grey |
| Cover color | RAL 7035 -light grey |
| Gasket material | Polyurethane (PUR) |
| Temperature (°F continuous) | -40 … 175 |
| Temperature (°C continuous) | -40 … 80 |
| UL/cUL Type | UL/cUL 1, 4, 4X, 12 and 13 |
| UL 1741 | Compliant |
| Electrical insulation | Totally Insulated |
