8120023N Cabinet Style, PC
8120023N Cabinet Style, PC
SKU: SKU: ARCA 304021 NO-MP
Qty:
Unit price
per
Sold out
Shipping calculated at checkout.
IN STOCK Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
Description:

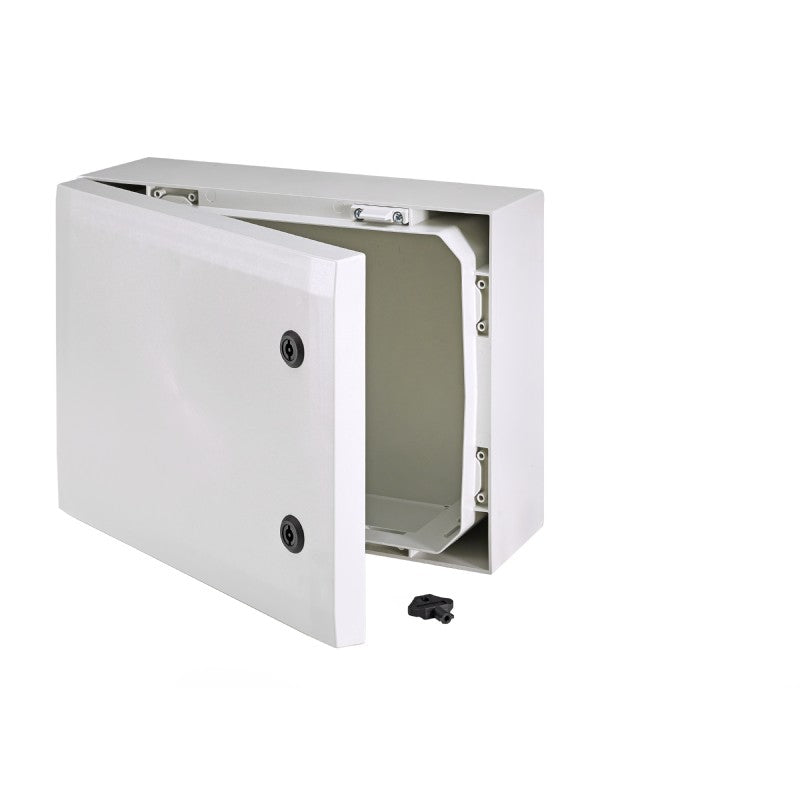

Cabinet Style, PC Grey cover, 2-point locking, hinges on the short side Includes cabinet enclosure with PUR gasket, 3mm double bit lock(s) with key, screws for mounting, and door guide.
Features and Benefits:
•UL Type NEMA 1, 4, 4X, 12 and 13.
•Ingress Protection (EN 60529): IP66.
•Impact Resistance (EN 62262): IK10.
•Material: Polycarbonate, PC.
•Halogen free (DIN/VDE 0472, Part 815): Yes.
•UV resistance: UL 508.
•Flammability Rating: UL94-5VA (f1).
•Glow Wire Test (IEC 60695): 960 °C.
Specifications:
| Dimensions (inches): | 11.81 x 15.75 x 8.27 |
| Dimensions (mm): | 300 x 400 x 210 |
| Temperature (°F, continuous): | -40 … 175 |
| Temperature (°C, continuous): | -40 … 80 |
| Base color: | RAL 7035 -light grey |
| Cover color: | RAL 7035 -light grey |
| Gasket material: | Polyurethane (PUR) |
| UL/cUL Type: | UL/cUL 1, 4, 4X, 12 and 13 |
| UL 1741: | Compliant |
| Electrical insulation: | Totally Insulated |
