8120022N Cabinet Style, PC
8120022N Cabinet Style, PC
SKU: SKU: ARCA 304015 NO-MP
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

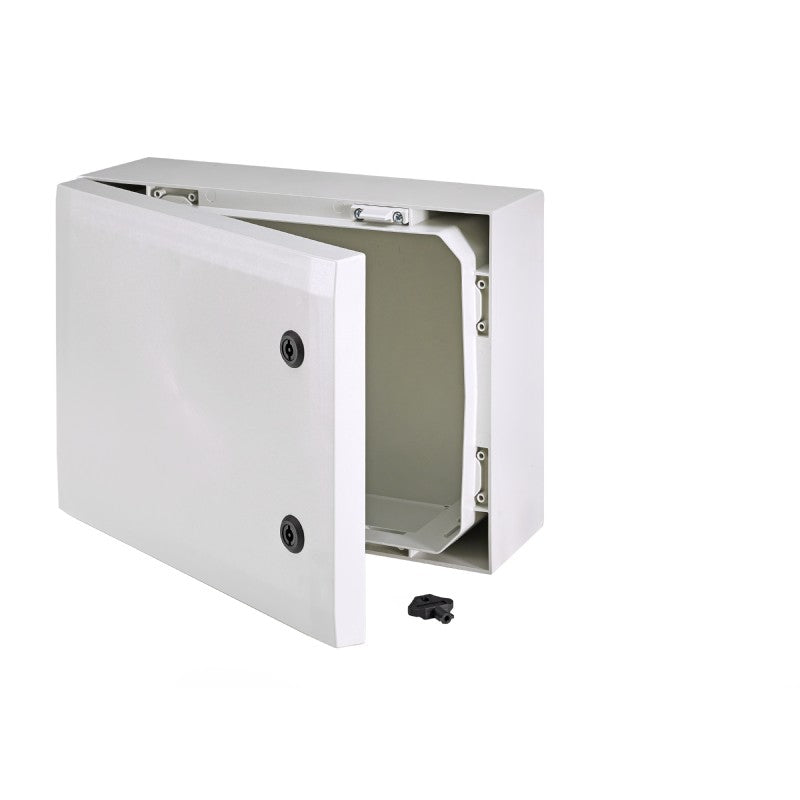

The cabinet style enclosure is constructed from polycarbonate (PC) material and features a grey cover with a 2-point locking mechanism It includes a PUR gasket for additional sealing, screws for mounting, and a door guide Designed to meet various UL/cUL ratings including Type 1, 4, 4X, 12, and 13 with an ingress protection rating of IP66 and impact resistance of IK10 Suitable for use in demanding environments with a temperature range of -40 to 175 °F (-40 to 80 °C).
Features and Benefits:
•Constructed from durable polycarbonate (PC).
•Ingress protection rating of IP66 for dust and water resistance.
•Impact resistance rated at IK10.
•Grey cover with 2-point locking mechanism for added security.
•Suitable for various UL/cUL types.
Specifications:
| Dimensions (Height x Width x Depth): | 11.81 x 15.75 x 6.22 inches (300 x 400 x 150 mm) |
| Material: | Polycarbonate (PC) |
| Base Color: | RAL 7035 - light grey |
| Cover Color: | RAL 7035 - light grey |
| Gasket Material: | Polyurethane (PUR) |
| Temperature Range (°F): | -40 to 175 |
| Temperature Range (°C): | -40 to 80 |
| UL/cUL Type: | UL / cUL Type 1, 4, 4X, 12 and 13 |
| Ingress Protection: | IP66 |
| Impact Resistance: | IK10 |
| Electrical Insulation: | Totally Insulated |
| Halogen Free: | Yes |
| UV Resistance: | UL 508 |
| Flammability Rating: | UL94-5VA (f1) |
| Glow Wire Test: | 960 °C |
