8120020N Cabinet Style, PC
8120020N Cabinet Style, PC
SKU: SKU: ARCA 203015 NO-MP
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

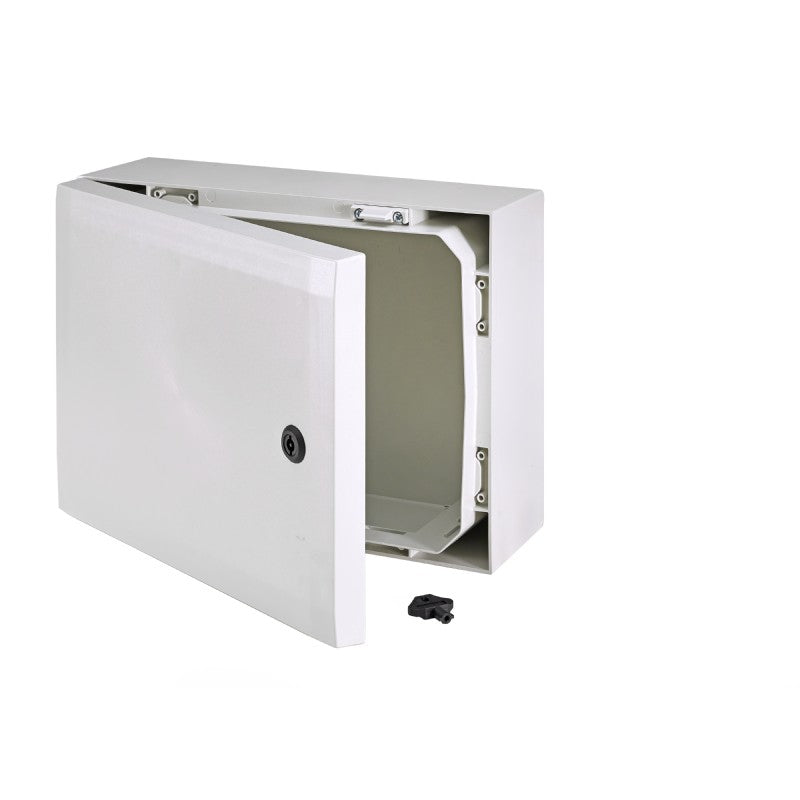

This product is a cabinet-style enclosure made from polycarbonate (PC), featuring a grey cover and a 1-point locking mechanism with hinges located on the short side The enclosure includes a PUR gasket and is suitable for various environmental conditions It adheres to UL/cUL Type ratings and has been designed for durability and functionality in numerous applications.
Features and Benefits:
•Cabinet enclosure with PUR gasket.
•3mm double bit lock(s) with key.
•Screws for mounting and door guide included.
•Ingress Protection rated IP66.
•Impact Resistance rated IK10.
•Suitable for various NEMA Types including 1, 2, 3, 3R, 4, 4X, 12, & 13.
•Totally insulated and halogen free.
Specifications:
| Dimensions (Height x Width x Depth in inches) | 7.87 x 11.81 x 5.9 |
| Dimensions (Height x Width x Depth in mm) | 200 x 300 x 150 |
| Material | Polycarbonate, PC |
| Base color | RAL 7035 - light grey |
| Cover color | RAL 7035 - light grey |
| Gasket material | Polyurethane (PUR) |
| Temperature °F (continuous) | -40 … 175 |
| Temperature °C (continuous) | -40 … 80 |
| UL/cUL Type | UL / cUL Type 1, 2, 3, 3R, 4, 4X, 12, & 13 |
| Ingress Protection (EN 60529) | IP66 |
| Impact Resistance (EN 62262) | IK10 |
| Electrical insulation | Totally Insulated |
| Halogen free (DIN/VDE 0472, Part 815) | Yes |
| UV resistance | UL 508 |
| Flammability Rating | UL94-5VA (f1) |
| Glow Wire Test (IEC 60695) | 960 °C |
