8120019N Cabinet Style, PC
8120019N Cabinet Style, PC
SKU: SKU: ARCA 806030 NO-MP
Regular price
Now $58,253.00
Regular price
BEFORE
Sale price
Now $58,253.00
Unit price
per
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
Couldn't load pickup availability
Product Information
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

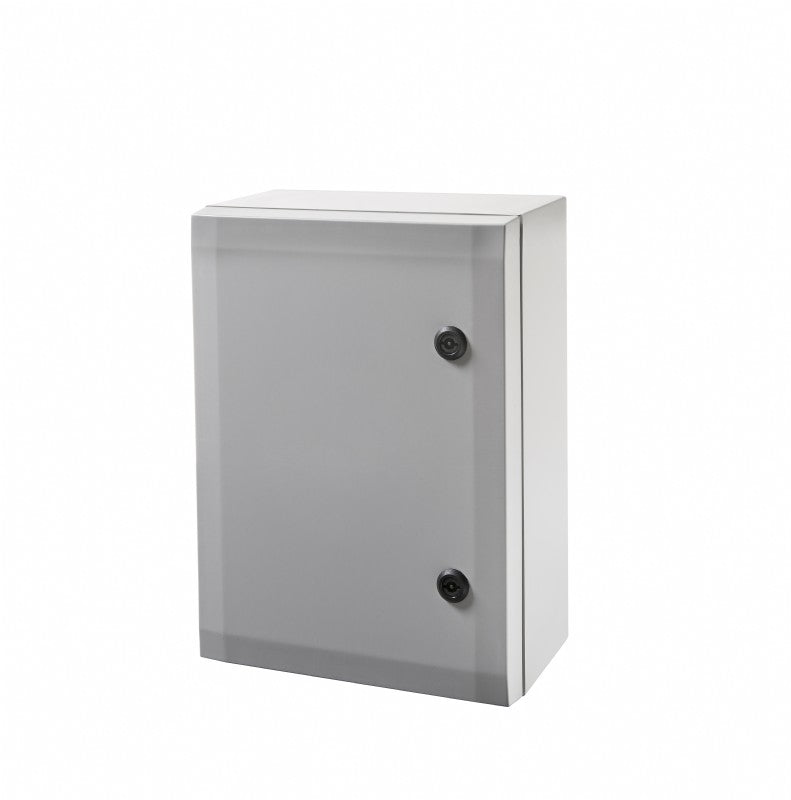

Cabinet Style, PC with grey cover, featuring 2-point locking and hinges on the short side Includes a cabinet enclosure with PUR gasket, 3mm double bit lock(s) with key, screws for mounting, and door guide.
Specifications:
| Dimensions (mm) | 800 x 600 x 300 |
| Materials | Polycarbonate, PC |
| Base color | RAL 7035 -light grey |
| Cover color | RAL 7035 -light grey |
| Gasket material | Polyurethane (PUR) |
| Temperature (continuous °C) | -40 … 80 |
| UL/cUL Type | 1, 4, 4X, 12 and 13 |
| Ingress Protection (EN 60529) | IP66 |
| Impact Resistance (EN 62262) | IK10 |
| Electrical insulation | Totally Insulated |
| Halogen free (DIN/VDE 0472, Part 815) | Yes |
| UV resistance | UL 508 |
| Flammability Rating | UL94-5VA (f1) |
| Glow Wire Test (IEC 60695) | 960 °C |
