8120012N Cabinet Style, PC
8120012N Cabinet Style, PC
SKU: SKU: ARCA 604021 NO-MP
Regular price
Now $27,283.00
Regular price
BEFORE
Sale price
Now $27,283.00
Unit price
per
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
Couldn't load pickup availability
Product Information
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

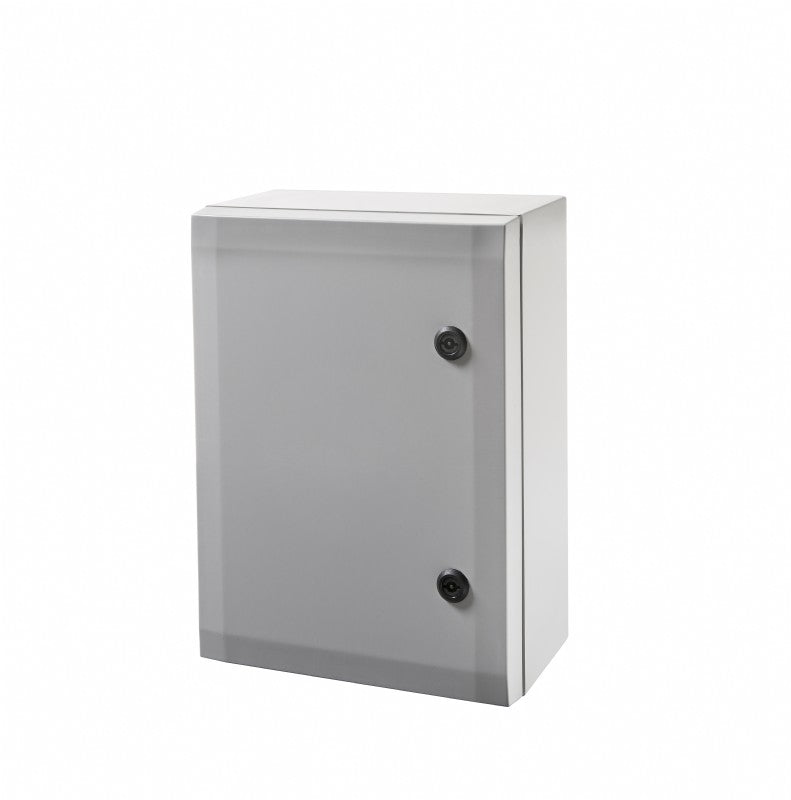

Cabinet Style, PC Grey cover, 2-point locking, hinges on the long side Including cabinet enclosure with PUR gasket, 3mm double bit lock(s) with key, screws for mounting, and door guide.
Specifications:
| Dimensions (inch) | 23.62 x 15.75 x 8.58 |
| Dimensions (mm) | 600 x 400 x 210 |
| Material | Polycarbonate, PC |
| Base color | RAL 7035 -light grey |
| Cover color | RAL 7035 -light grey |
| Gasket material | Polyurethane (PUR) |
| Temperature (°F) | -40 … 175 |
| Temperature (°C) | -40 … 80 |
| UL/cUL Type | 1, 4, 4X, 12 and 13 |
| Ingress Protection | IP66 |
| Impact Resistance | IK10 |
| Electrical insulation | Totally Insulated |
| Halogen free | Yes |
| UV resistance | UL 508 |
| Flammability Rating | UL94-5VA (f1) |
| Glow Wire Test | 960 °C |
