8120011N Cabinet Style, PC
8120011N Cabinet Style, PC
SKU: SKU: ARCA 504021 NO-MP
Qty:
Unit price
per
Sold out
Shipping calculated at checkout.
IN STOCK Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
Description:

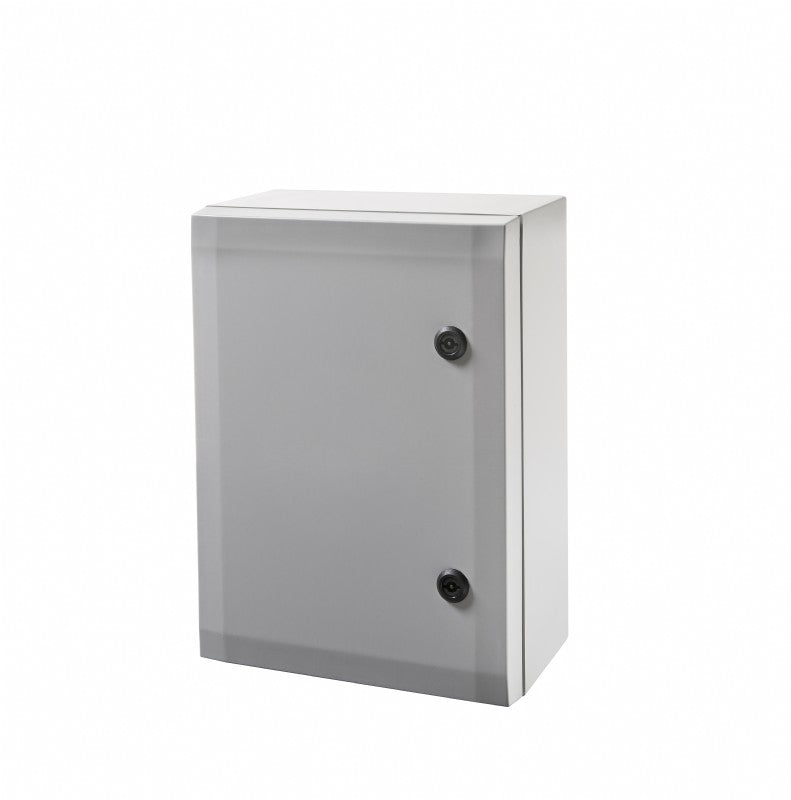

Cabinet Style, PC with grey cover, 2-point locking, hinges on the long side The cabinet enclosure includes a PUR gasket, 3mm double bit lock(s) with key, screws for mounting, and a door guide It is designed for robust applications with a solid PC material construction.
Features and Benefits:
•UL Type NEMA 1, 4, 4X, 12 and 13.
•IP66 Ingress Protection.
•IK10 Impact Resistance.
•Totally Insulated and Halogen free.
•UV resistance and Flammability Rating UL94-5VA (f1).
•Glow Wire Test (IEC 60695) rating of 960 °C.
Specifications:
| Dimensions (inch) | 19.68 x 15.75 x 8.27 |
| Material | Polycarbonate, PC |
| Base color | RAL 7035 -light grey |
| Cover color | RAL 7035 -light grey |
| Gasket material | Polyurethane (PUR) |
| Temperature (°F continuous) | -40 … 175 |
| Temperature (°C continuous) | -40 … 80 |
| UL/cUL Type | UL/cUL 1, 4, 4X, 12 and 13 |
| Ingress Protection | IP66 |
| Impact Resistance | IK10 |
| Electrical insulation | Totally Insulated |
| Halogen free | Yes |
| UV resistance | UL 508 |
| Flammability Rating | UL94-5VA (f1) |
| Glow Wire Test | 960 °C |
