8120009N Cabinet Style, PC
8120009N Cabinet Style, PC
SKU: SKU: ARCA 404021 NO-MP
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

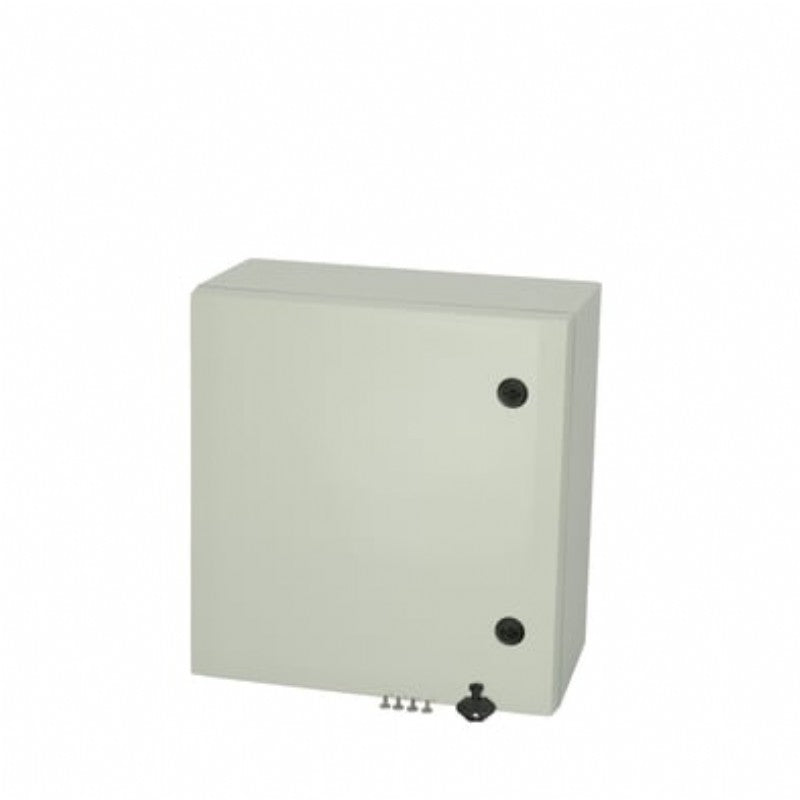

Cabinet Style, PC with a grey cover, two-point locking mechanism, and hinges on the long side The cabinet enclosure features a PUR gasket and includes a 3mm double bit lock with key, screws for mounting, and a door guide.
Features and Benefits:
•Cabinet enclosure with PUR gasket.
•2-point locking mechanism.
•Hinges on the long side.
•IP66 rating for dust and water resistance.
•IK10 impact resistance rating.
•Totally insulated electrical insulation.
•Halogen-free materials.
Specifications:
| Dimensions (inches) | 15.75 x 15.75 x 8.58 |
| Dimensions (mm) | 400 x 400 x 210 |
| Material | Polycarbonate, PC |
| Base color | RAL 7035 - light grey |
| Cover color | RAL 7035 - light grey |
| Gasket material | Polyurethane (PUR) |
| Temperature (continuous, °F) | -40 to 175 |
| Temperature (continuous, °C) | -40 to 80 |
| UL/cUL Type | UL/cUL 1, 4, 4X, 12 and 13 |
| Ingress Protection (EN 60529) | IP66 |
| Impact Resistance (EN 62262) | IK10 |
| Electrical insulation | Totally Insulated |
| Halogen free | Yes |
| UV resistance | UL 508 |
| Flammability Rating | UL94-5VA (f1) |
| Glow Wire Test (IEC 60695) | 960 °C |
