8120007N Cabinet Style, PC
8120007N Cabinet Style, PC
SKU: SKU: ARCA 403021 NO-MP
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

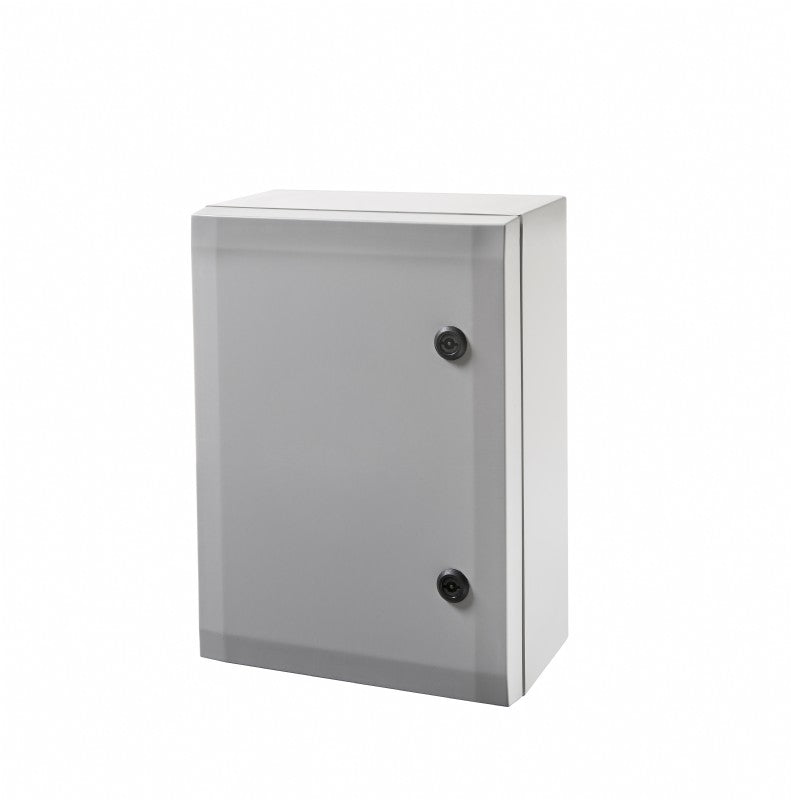

Cabinet Style, PC with dimensions 1575 x 1181 x 826 inches It features a grey cover, 2-point locking, and hinges on the long side The cabinet includes a PUR gasket and comes with 3mm double bit lock(s) with key, screws for mounting, and a door guide It complies with UL Type NEMA 1, 4, 4X, 12 and 13 specifications and has an ingress protection rating of IP66 and impact resistance rating of IK10.
Features and Benefits:
•Includes cabinet enclosure with PUR gasket.
•3mm double bit lock(s) with key.
•Screws for mounting and door guide.
•UL Type NEMA 1, 4, 4X, 12 and 13 compliant.
•Ingress Protection IP66.
•Impact Resistance IK10.
•Made from Polycarbonate material.
Specifications:
| Dimensions (inches) | 15.75 x 11.81 x 8.26 |
| Dimensions (mm) | 400 x 300 x 210 |
| Material | Polycarbonate, PC |
| Base color | RAL 7035 - light grey |
| Cover color | RAL 7035 - light grey |
| Gasket material | Polyurethane (PUR) |
| Temperature (°F) | -40 … 175 |
| Temperature (°C) | -40 … 80 |
| UL/cUL Type | UL/cUL 1, 4, 4X, 12 and 13 |
| Ingress Protection | IP66 |
| Impact Resistance | IK10 |
| Electrical insulation | Totally Insulated |
| Halogen free | Yes |
| UV resistance | UL 508 |
| Flammability Rating | UL94-5VA (f1) |
| Glow Wire Test | 960 °C |
