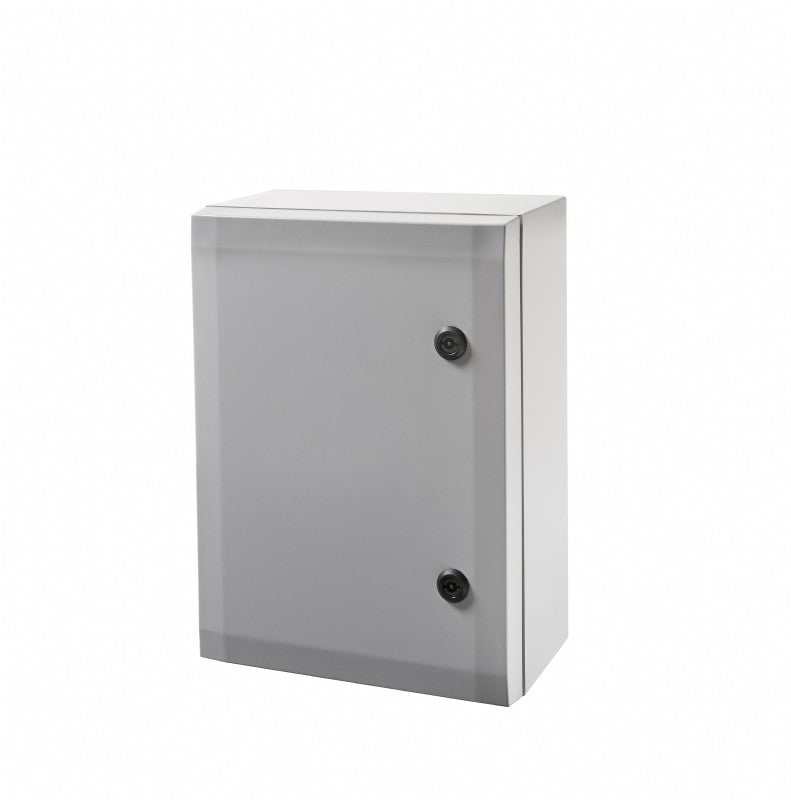

8120006N Cabinet Style, PC
8120006N Cabinet Style, PC
SKU: SKU: ARCA 403015 NO-MP
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Cabinet Style, PC with a grey cover, featuring a 2-point locking mechanism and hinges on the long side It is designed to meet UL Type standards including NEMA 1, 4, 4X, 12 and 13, and is constructed from polycarbonate material The enclosure includes a PUR gasket, 3mm double bit lock(s) with key, screws for mounting, and a door guide.
Features and Benefits:
•UL/cUL Type 1, 4, 4X, 12 and 13 compliant.
•Ingress Protection rating of IP66.
•Impact Resistance rating of IK10.
•Materials include polycarbonate and polyurethane for durability.
•Halogen free and UV resistant.
Specifications:
| Dimensions (inch) | 15.75 x 11.81 x 6.22 |
| Dimensions (mm) | 400 x 300 x 150 |
| Material | Polycarbonate, PC |
| Base color | RAL 7035 - light grey |
| Cover color | RAL 7035 - light grey |
| Gasket material | Polyurethane (PUR) |
| Temperature (°F continuous) | -40 … 175 |
| Temperature (°C continuous) | -40 … 80 |
| Electrical insulation | Totally Insulated |
| Flammability Rating | UL94-5VA (f1) |
| Glow Wire Test (IEC 60695) | 960 °C |
