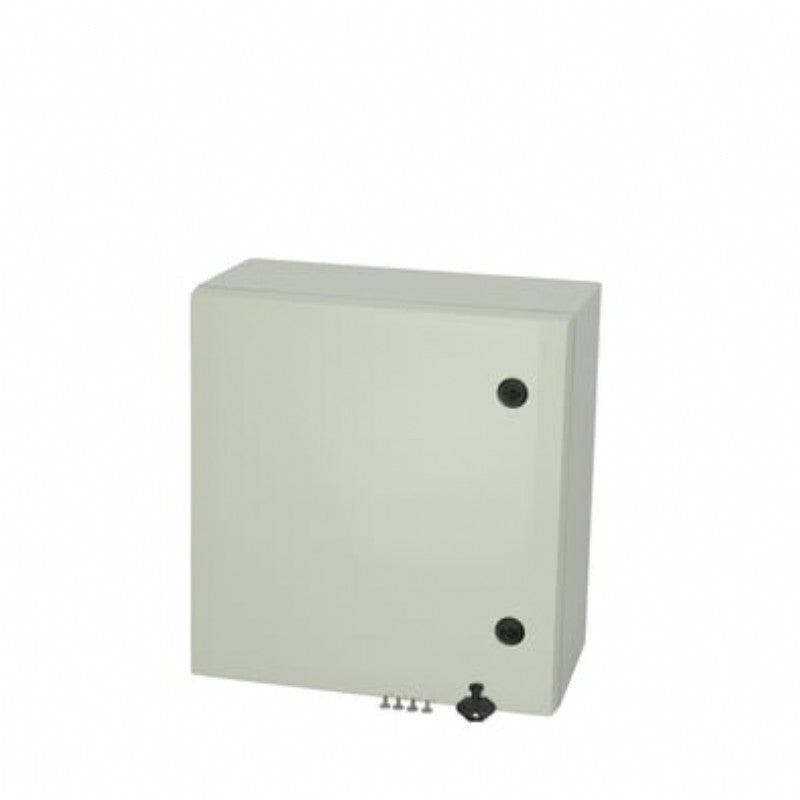

8120005N Cabinet Style, PC
8120005N Cabinet Style, PC
SKU: SKU: ARCA 303021 NO-MP
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Cabinet Style, PC features a grey cover with a 2-point locking system, hinges located on the long side, and includes a cabinet enclosure with a PUR gasket, 3mm double bit locks with keys, screws for mounting, and door guide It complies with UL Type and cUL standards, having NEMA Types 1, 4, 4X, 12, and 13 ratings, as well as IP66 and IK10 ingress protection This enclosure is designed to meet various environmental conditions and is suitable for multiple applications.
Features and Benefits:
•UL / cUL Type 1, 4, 4X, 12 and 13 compliant.
•IP66 ingress protection.
•IK10 impact resistance.
•Includes cabinet enclosure with PUR gasket.
•Grey cover with 2-point locking system.
Specifications:
| Dimensions (inches) | Height: 11.81, Width: 11.81, Depth: 8.58 |
| Material | Polycarbonate, PC |
| Base Color | RAL 7035 - light grey |
| Cover Color | RAL 7035 - light grey |
| Gasket Material | Polyurethane (PUR) |
| Continuous Temperature (°F) | -40 … 175 |
| Continuous Temperature (°C) | -40 … 80 |
| Ingress Protection | IP66 |
| Impact Resistance | IK10 |
| Electrical insulation | Totally Insulated |
| Halogen Free | Yes |
| UV Resistance | UL 508 |
| Flammability Rating | UL94-5VA (f1) |
| Glow Wire Test | 960 °C |
