8120002N Cabinet Style, PC
8120002N Cabinet Style, PC
SKU: SKU: ARCA 302015 NO-MP
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

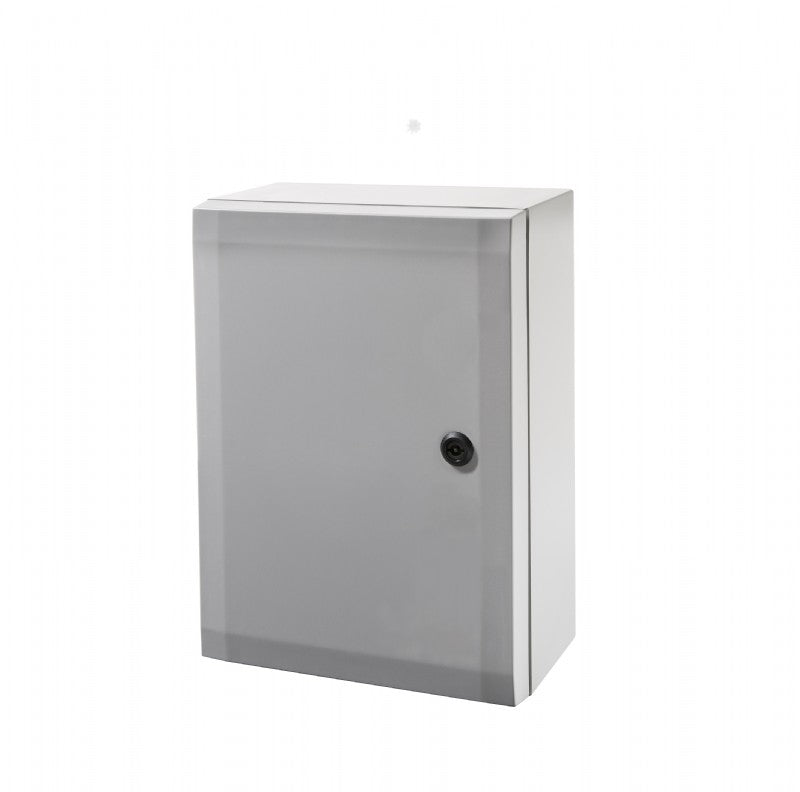

Cabinet Style, PC is equipped with a grey cover, designed with a 1-point locking mechanism, and hinges positioned on the long side It includes a cabinet enclosure with PUR gasket, offers durability, and comes with 3mm double bit lock(s) with key, screws for mounting, and a door guide The product is suitable for various environments due to its IP66 rating and impact resistance.
Features and Benefits:
•Cabinet enclosure with PUR gasket for enhanced protection.
•1-point locking mechanism for security.
•Hinges on the long side for convenient access.
•UL Type 1, 4, 4X, 12 and 13 compliant for safety.
•IP66 ingress protection ensuring dust and water resistance.
•IK10 impact resistance for durability.
•Made from halogen-free materials.
Specifications:
| Dimensions (inch) | 11.81 x 7.87 x 5.9 |
| Dimensions (mm) | 300 x 200 x 150 |
| Material | Polycarbonate, PC |
| Base color | RAL 7035 -light grey |
| Cover color | RAL 7035 -light grey |
| Gasket material | Polyurethane (PUR) |
| Continuous Temperature (°F) | -40 … 175 |
| Continuous Temperature (°C) | -40 … 80 |
| UL/cUL Type | 1, 4, 4X, 12 and 13 |
| Ingress Protection | IP66 |
| Impact Resistance | IK10 |
| Electrical insulation | Totally Insulated |
| Halogen free | Yes |
| UV resistance | UL 508 |
| Flammability Rating | UL94-5VA (f1) |
| Glow Wire Test | 960 °C |
