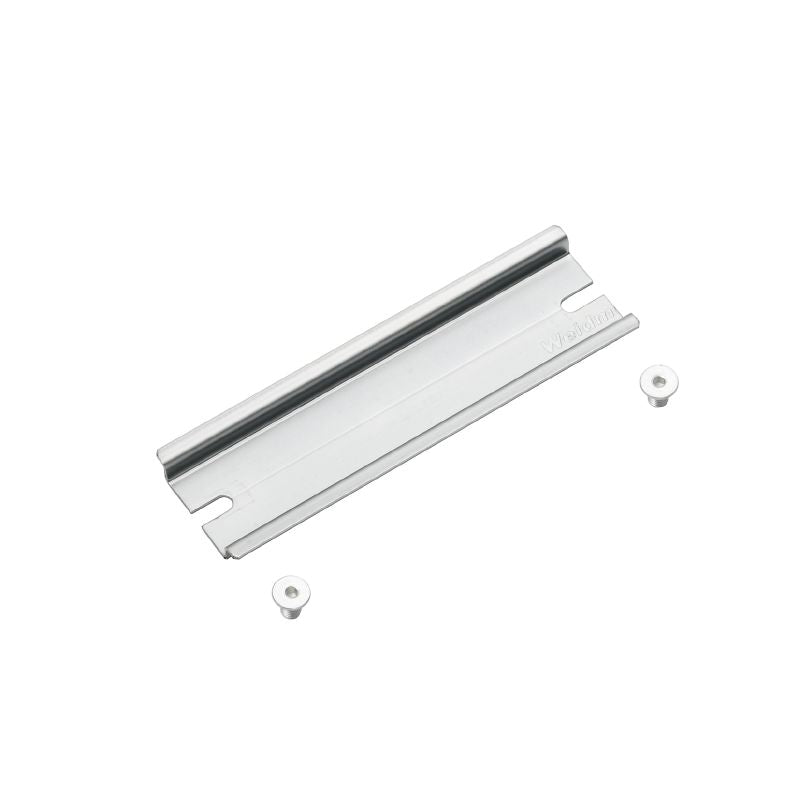

8000006725 - 419mm Galvanized Steel Rail, TS 35x7.5, RoHS Approved (Pack of 20)
8000006725 - 419mm Galvanized Steel Rail, TS 35x7.5, RoHS Approved (Pack of 20)
SKU: SKU: 8000006725 Download PDF
- 8000006725 - 419mm Galvanized Steel Rail, TS 35x7.5, RoHS Approved (Pack of 20)
- 8000006725 - 419mm Galvanized Steel Rail, TS 35x7.5, RoHS Approved (Pack of 20)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the TS35X75 ST KTB4848 HOR rail, crafted to meet TS 35 x 75 standards With a width of 419 mm, this sturdy rail is made from galvanized steel featuring a premium chromium-plated coating for added durability It complies with RoHS regulations and is free from any SVHC substances exceeding the 01 wt% limit, ensuring a safe choice for various applications.
Features and Benefits:
•Made from galvanized steel.
•Screwed integral fixing.
•Material thickness of 1 mm.
Specifications:
| Depth | 7.5 mm |
| Depth (inches) | 0.295 inch |
| Height | 35 mm |
| Height (inches) | 1.378 inch |
| Width | 419 mm |
| Width (inches) | 16.496 inch |
| Net weight | 169.25 g |
| Basic material | Steel |
| Standards | DIN EN 60715 |
| Surface finish | galvanized, chromium-plated |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material thickness | 1 mm |
| ETIM 6.0 | EC001285 |
| ETIM 7.0 | EC001285 |
| ETIM 8.0 | EC001285 |
| ETIM 9.0 | EC001285 |
| ETIM 10.0 | EC001285 |
| ECLASS 9.0 | 27-40-06-02 |
| ECLASS 9.1 | 27-40-06-02 |
| ECLASS 10.0 | 27-40-06-02 |
| ECLASS 11.0 | 27-40-06-02 |
| ECLASS 12.0 | 27-40-06-02 |
| ECLASS 13.0 | 27-40-06-02 |
| ECLASS 14.0 | 27-40-06-02 |
| ECLASS 15.0 | 27-40-06-02 |
