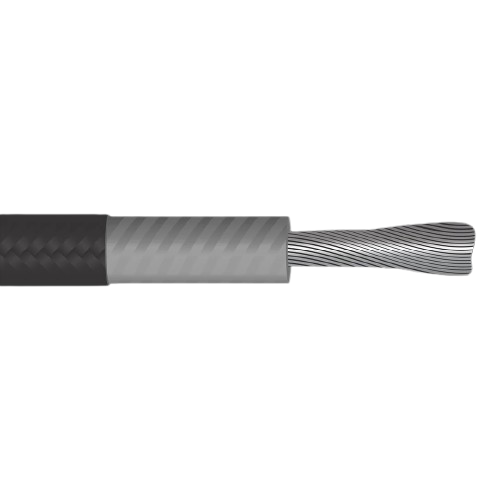

8 AWG 1C SF-2 SEW-2 High Temperature Motor Lead Wire 600V 200C
8 AWG 1C SF-2 SEW-2 High Temperature Motor Lead Wire 600V 200C
SKU: SKU: NNC080085 Download PDF
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
8 AWG 1C SF-2 SEW-2 High Temperature Motor Lead Wire 600V 200C
Application:
Used for internal wiring of appliances, electrical equipment, and lighting fixtures.
Also Known As:
8 AWG SF-2 wire, 8 AWG SEW-2 motor lead wire, 8 AWG SEW-2 high temp wire, 8 AWG 600V 200C SF-2 wire, 8 AWG high temp motor wire, 8 AWG SF-2 SEW-2 specs, 8 AWG High temperature wire, 8 AWG 200°C 600V lead wire, 8 AWG SEW-2 high heat wire, 8 AWG SF-2 motor lead 600V 200C,
Conductor:
Stranded tinned, annealed copper per ASTM B33.
Sizes:
18 AWG - #6 AWG
Insulation:
Silicone Rubber. A fiberglass braid jacket is applied over the insulation, then treated with a high-temp finish. This product is available in a wide range of colors.
Approvals:
18 AWG - 14 AWG are UL approved as fixture wire (SF-2). UL appliance wire approvals as listed. CSA approved as equipment wire (SEW-2) as well as appliance wire.
Specifications:
• Size: 8 AWG
• Stranding: 54/.0179
• Insulation Thick: 0.060
• Braid Thick: 0.017
• Nominal. O.D: 0.300
• UL Style: 3231
• Temp Rating: 200°C
• Approx Weight LBS/K FT : 92
