250' 8-8 Bard Duplex Aluminum Conductor Underground Direct Burial 600V URD

8-8 Bard Duplex Aluminum Conductor Underground Direct Burial 600V URD

Allowable Ampacity for 8-8 Bard Duplex Aluminum Conductor 600V URD Underground Direct Burial : 70 Amps

Allowable Ampacity for 8-8 Bard Duplex Aluminum Conductor 600V URD in duct: 55 Amps

Also Known As:

8-8 bard aluminum urd cable, 8-8 bard urd direct burial cable, 8-8 bard two conductor cable, 8-8 bard direct burial electrical cable, 8-8 bard direct burial power cable, 8-8 bard aluminum direct burial cable, 8-8 bard 2 conductor power cable, 8-8 bard two conductor.

Conductors:

Aluminum conductors used for this cable are designed in either concentric strand or in compressed series. The advantage with a compressed conductor is the reduced bulkiness. Compressed conductors are also stronger and tougher; the stranded conductors are highly flexible and tend to have lower electrical resistance. Stranded conductors therefore reduce power loss and are also easier to use in applications where flexibility is vital.

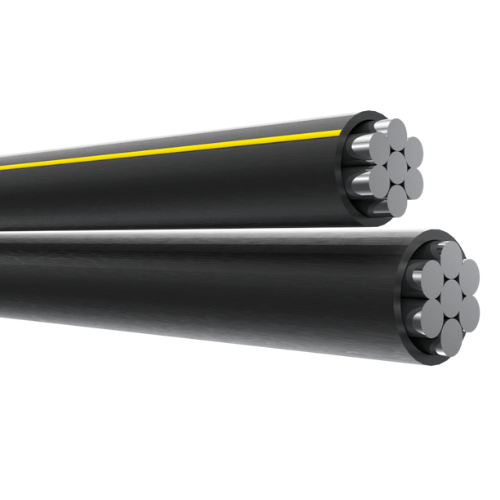

Aluminum 600 V URD cable has its two conductors coupled together and surface printing helps in identification of the conductors. The color for the neutral conductor is always yellow stripped.

Insulation:

Versatile insulation system made of cross linked black polyethylene material helps to secure the cable conductors. This insulation is water tight, repulsive to corrosive substances, resistant to oil, heat and flame. Cross linking a polyethylene helps to achieve an excellent strength that makes the material suitable for covering this cable used in harsh conditions like direct burial installation.
