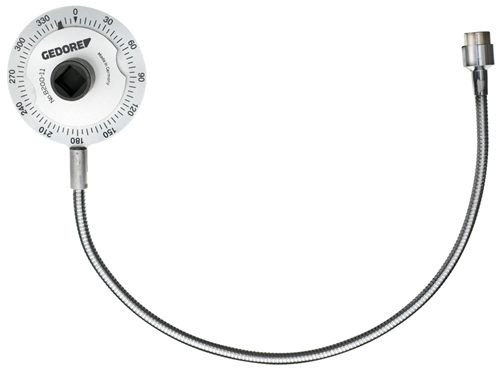

7718480 - 1/2" Torque Angle Indicator with Magnetic Arm, 0-360° Adjustment
7718480 - 1/2" Torque Angle Indicator with Magnetic Arm, 0-360° Adjustment
SKU: SKU: 7718480
Couldn't load pickup availability

Description:
Introducing a precision tool featuring adjustable angle regulation for optimal torque and angle activation This model includes unique separate angle rotation gauges with options for 1/2" or 3/4" square drives, allowing for precise angle tightening from 0 to 360 degrees Choose between a 1/2" square drive secured with a ball lock or a 3/4" square drive with a pin lock
The workshop models No 8200-01/-02 come equipped with a sliding claw and a magnetic arm, while model No.
8200-11 offers a straightforward design featuring only the magnetic arm Designed for use with an appropriate torque wrench, be sure to adhere to the maximum load limits specified for the torque wrench.
Specifications:
| Drive connector square [inch] | 1/2" |
| Drive square inch | 1/2" |
| Diameter of head 1 | 82 mm |
| Compliance | compliant |
| Scale ring | 0-360° |
