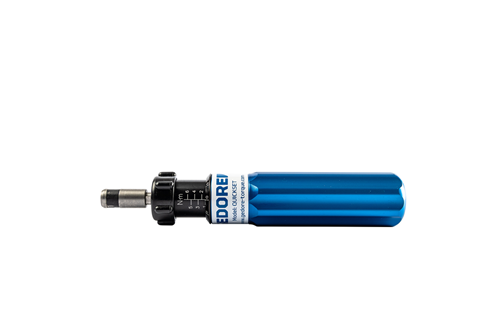

7718210 - High-Speed Torque Screwdriver for 4-9 Nm Controlled Tightening
7718210 - High-Speed Torque Screwdriver for 4-9 Nm Controlled Tightening
SKU: SKU: 7718210
Couldn't load pickup availability
Description:
Experience precision with our screw tightening tool, engineered for controlled tightening within the range of 4 to 9 Nm Its high-speed tightening capability makes it an essential tool for serial production in electrical and electronic devices, instrument manufacturing, and industrial quality control Perfect for professionals seeking efficiency and reliability in their work.
Features and Benefits:
•Adjustable Torque Wrench with Single Scale.
•1/4" female hexagon drive for use with 1/4" hexagon bits as per DIN 3126 - C 6.3.
•Working accuracy: +/- 6 % tolerance of set torque.
•Acc. to DIN EN ISO 6789, traceable to national standards.
•Precision radial ball clutch and cam design for controlled bi-directional tightening.
•Micrometre scale graduation: 1 cNm resp. 0,1 Nm.
•Lightweight construction by virtue of anodised aluminium handgrips.
•Precision mechanism slips notably when pre-set value is achieved.
•Automatic resetting to starting position.
•Includes additional cross handle for easier operation.
•Delivery in sturdy cardboard packaging.
•Assembly.
•Production.
•Quality control.
•Series assembly.
•Maintenance and repair.
Specifications:
| Total height [mm] | 35 mm |
| Total length [mm] | 184 mm |
| Net weight [kg] | 0.335 kg |
| Drive connector hexagon [metric] | 6,3 |
| Drive connector hexagon [inch] | 1/4" |
| Drive type/drive | Bitholder |
| Tightening direction | Left and right |
| Trigger mechanism | Friction clutch |
| Torque (max.) [Nm] | 9 Nm |
| Torque (min.) [Nm] | 4 Nm |
| Epa-/Esd-Model | No |
| Fixed setting | Yes |
| Precision +/- | +/- 6 % |
| Test certificate | DIN EN ISO 6789-2:2017 |
| Cross-handle available | No |
| Compliance | compliant |
