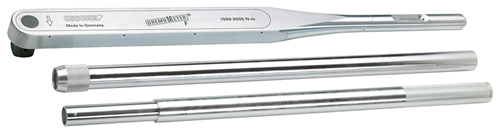

7717160 - DREMOMETER F Torque Wrench 1500-3000 Nm, Accurate & Certified
7717160 - DREMOMETER F Torque Wrench 1500-3000 Nm, Accurate & Certified
SKU: SKU: 7717160
Couldn't load pickup availability

Description:
Experience precision with the DREMOMETER F 11/2" torque wrench, expertly crafted for controlled screw tightening within a torque range of 1500 to 3000 Nm This reliable tool is suitable for various industrial applications, delivering accurate torque measurements and ease of operation Made in accordance with DIN EN ISO 6789-2:2017 Type II Class A standards, it also comes with a traceable test certificate.
Enjoy enhanced accuracy with its calibration, which allows for a maximum permissible deviation of just +/- 3%, surpassing the standard requirement of +/- 4%.
Features and Benefits:
•Classified according to DIN EN ISO 6789-2:2017 Type II Class A with traceable test certificate..
•Calibrated to a maximum permissible deviation of +/- 3 %. .
•1.1/2" square drive with pin-locking mechanism DIN 3121 - F 40, ISO 1174..
•Automatic short-path actuation with tactile impulse and audible signal..
•Single scale with 50 Nm graduation..
•Lightweight and robust aluminum alloy housing..
•High degree of user safety with square drive and fulcrum on an axis..
•Extremely low wear and high durability..
•Easy operation for fast and safe torque tightening..
•Easy adjustment with attractive adjusting button secured against loss..
•Assembly.
•Maintenance and repair.
Specifications:
| Total width [mm] | 70 mm |
| Total height [mm] | 40 mm |
| Total length [mm] | 1.037 mm |
| Drive type/drive | Single square |
| Drive connector square [metric] | 40 mm |
| Drive square inch | 1.1/2" |
| Torque (max.) [Nm] | 3000 Nm |
| Torque (min.) [Nm] | 1500 Nm |
| Calibration length | 2309 mm |
| Width of head 1 [mm] | 70.0 mm |
| Head height 1 [mm] | 40 mm |
| Length extension tube | 925 mm |
| Length of slip-on tube 2 | 745 mm |
| Material | Aluminum alloy |
| Precision +/- | +/- 3 % |
| Test certificate | DIN EN ISO 6789-2:2017 |
| Compliance | compliant |
