7714220 - Precision Torque Wrench 80-400Nm, Lightweight Aluminium Design
7714220 - Precision Torque Wrench 80-400Nm, Lightweight Aluminium Design
SKU: SKU: 7714220
Couldn't load pickup availability
Description:
Experience precision with our expertly engineered torque wrench, compliant with DIN EN ISO 6789-2:2017 Type II Class A standards This tool boasts a remarkable accuracy of +/-3% deviation, surpassing the typical +/-4% requirement Constructed from a lightweight yet durable aluminum alloy, it is designed for resilience and ease of use in any workshop environment
The wrench features a versatile drive compatible with a broad range of accessories.
Depending on your task, you can access the drive from the front for open-end fittings or from the side for reversible ratchets and sockets To ensure accurate torque application, grip the handle in the center and avoid using extension tubes, which may compromise precision Additionally, always utilize original GEDORE accessories and pay attention to the depth gauges outlined in the certificate
Built to withstand rigorous tasks, the forged lever chain is sourced from our high-quality forge, ensuring low wear due to minimized force in the lever mechanism.
With consistent performance under prolonged use, this tool offers extended lifespans and reliable functionality Its user-friendly design allows for quick and safe torque adjustments, featuring an attractive securing button at the handle's end that prevents loss Each wrench is certified per DIN EN ISO 6789-2:2017, with traceability backed by our in-house DAkkS laboratory to national standards.
Features and Benefits:
•Lightweight yet robust due to aluminum alloy housing.
•Maximum precision with +/-3% deviation.
•Extremely low wear from reduced forces in lever mechanism.
•Long life cycles and tool lives.
•Easy operation for fast and safe torque tightening.
•Traceable calibration certificate.
•Assembly.
•Series assembly.
•Production.
•Maintenance and repair.

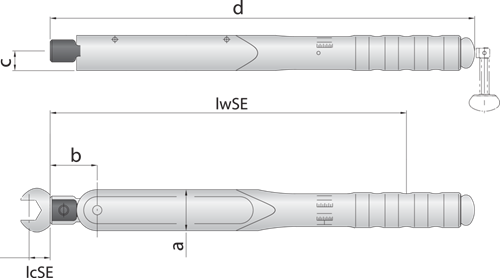

Specifications:
| Total width (mm) | 35 mm |
| Total height (mm) | 30 mm |
| Total length (mm) | 641 mm |
| Distance housing - square drive | 16.5 mm |
| Drive connector rectangular | 14 x 18 mm |
| Drive type/drive | Rectangular cavity |
| Tightening direction | Left and right |
| Trigger mechanism | Short path triggering |
| Torque (max) [lbf·ft] | 300 lbf·ft |
| Torque (min) [lbf·ft] | 60 lbf·ft |
| Torque (max) [Nm] | 400 Nm |
| Torque (min) [Nm] | 80 Nm |
| Torque wrench type | C-SE |
| Insertion depth 1 | 25.0 mm |
| Fixed setting | No |
| Lever length drive side (mm) | 53 mm |
| Lever length handle side (mm) | 588 mm |
| Calibration length | 582 mm |
| Width of head 1 (mm) | 35.0 mm |
| Head height 1 (mm) | 30 mm |
| Material | Aluminum alloy |
| Precision +/- | +/- 3 % |
| Test certificate | DIN EN ISO 6789-2:2017 |
| Compliance | compliant |
| Safety | Locking pin |
| Graduation [lbf·ft] | 5 lbf·ft |
| Scale division [Nm] | 5 Nm |
| Depth gauge [metric] | 25.0 mm |
