7714140 - Precision Torque Wrench 25-120Nm, Lightweight Aluminum Alloy
7714140 - Precision Torque Wrench 25-120Nm, Lightweight Aluminum Alloy
SKU: SKU: 7714140
Couldn't load pickup availability
Description:
Engineered to meet the rigorous standards of DIN EN ISO 6789-2:2017 Type II Class A, this tool is expertly calibrated to achieve a maximum allowable deviation of +/-3%, surpassing the precision requirement of +/-4% Crafted from a lightweight yet durable aluminum alloy, its construction makes it ideal for workshop environments, ensuring resilience and ease of use
Featuring a versatile drive compatible with a wide array of accessories, this tool allows access from both the front and side, depending on your specific needs.
To ensure precise force application, it is designed for use with end fittings only, with the force applied centrally on the handgrip to maintain accuracy The lever mechanism is engineered to minimize wear, further enhancing precision during extended use
This tool combines longevity with effortless operation, making fast and secure tightening a breeze Additionally, it includes a convenient adjustable button at the handle's end, designed to prevent loss.
Each unit comes with a certification in accordance with DIN EN ISO 6789-2:2017, traceable through a DAkkS laboratory to uphold national standards.
Features and Benefits:
•Lightweight and durable due to aluminum alloy housing.
•Adjustable with a certificate according to DIN EN ISO 6789-2:2017.
•Maximum precision with +/-3% deviation.
•Easy adjustment with secure adjusting button.
•Extremely low wear from lever mechanism.
•Long tool life and easy operation.
•Assembly.
•Series assembly.
•Production.
•Maintenance and repair.

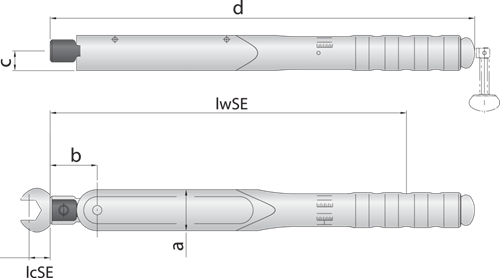

Specifications:
| Total width [mm] | 35 mm |
| Total height [mm] | 30 mm |
| Total length [mm] | 484 mm |
| Net weight [kg] | 1.25 kg |
| Distance housing - square drive | 16.5 mm |
| Drive connector rectangular | 9 x 12 mm |
| Drive type/drive | Rectangular cavity |
| Tightening direction | Left and right |
| Trigger mechanism | Short path triggering |
| Torque (max.) [lbf·ft] | 90 lbf·ft |
| Torque (min.) [lbf·ft] | 18 lbf·ft |
| Torque (max.) [Nm] | 120 Nm |
| Torque (min.) [Nm] | 25 Nm |
| Torque wrench type | B-SE |
| Fixed setting | No |
| Lever length drive side [mm] | 40 mm |
| Lever length handle side [mm] | 444 mm |
| Calibration length | 413.5 mm |
| Width of head 1 [mm] | 35.0 mm |
| Head height 1 [mm] | 30 mm |
| Material | Aluminum alloy |
| Precision +/- | +/- 3 % |
| Test certificate | DIN EN ISO 6789-2:2017 |
| Compliance | compliant |
| Safety | Locking pin |
| Graduation [lbf·ft] | 5 lbf·ft |
| Scale division [Nm] | 5 Nm |
| Depth gauge [metric] | 17.5 mm |
