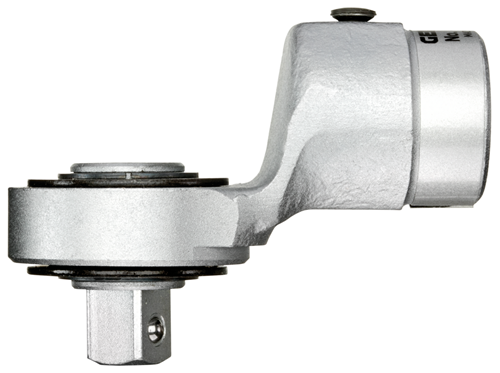

7711980 - Forged 3/8" Reversible Ratchet with Locking Pin, Chromium Vanadium Steel
7711980 - Forged 3/8" Reversible Ratchet with Locking Pin, Chromium Vanadium Steel
SKU: SKU: 7711980
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Tackle challenging assembly tasks with ease using this high-quality tool, crafted from forged chromium vanadium steel Its matt chrome-plated finish adds durability while providing a secure grip, thanks to the integrated locking pin Designed to meet the standards of DIN EN ISO 6789:2003, it supports a maximum continuous load, making it a reliable choice for various applications.
Features and Benefits:
•Forged construction for durability.
•Made from chromium vanadium steel.
•Matt chrome-plated finish.
•Includes a locking pin for secure operation.
•Max continuous load rated according to standards.
Specifications:
| Drive connector pin: | 16 mm |
| Drive type/drive: | Push-through square |
| Drive connector square [metric]: | 10 mm |
| Drive square inch: | 3/8" |
| Number of teeth: | 36 |
| Continuous load: | 3/8" = 135 N·m |
| Material: | Chrome-vanadium steel |
| Compliance: | compliant |
| Return angle: | 10 ° |
| Depth gauge [metric]: | 32,0 mm |
