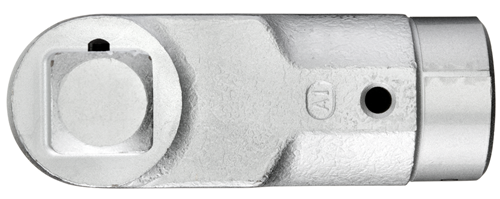

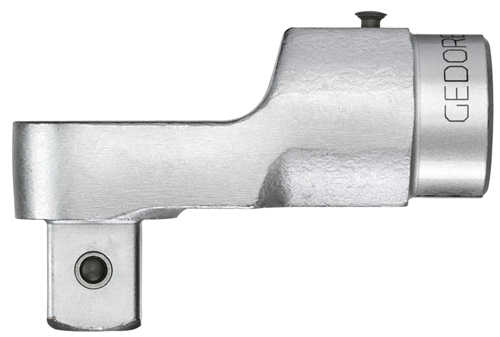

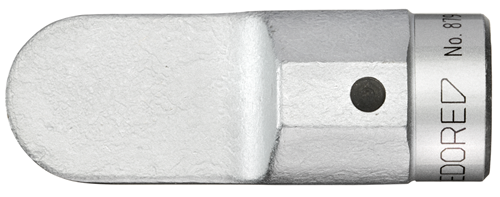

7708840 - 3/4" Square Attachment with 22 Teeth & Locking Pin
7708840 - 3/4" Square Attachment with 22 Teeth & Locking Pin
SKU: SKU: 7708840
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Product Description: Effortlessly tackle challenging assembly tasks with this easily replaceable tool Crafted from durable chromium vanadium steel and enhanced with a matte chrome finish, it boasts a reliable locking pin that ensures a secure connection.
Features and Benefits:
•Easily replaceable.
•Forged from chromium vanadium steel.
•Matt chrome-plated finish.
•Includes a locking pin.
Specifications:
| Drive connector pin | 22 mm |
| Drive connector square [metric] | 20 mm |
| Drive square inch | 3/4" |
| Continuous load | 3/4" = 850 N·m |
| Material | Chrome-vanadium steel |
| Compliance | compliant |
| Return angle | 10 ° |
| Depth gauge [metric] | 56.0 mm |
