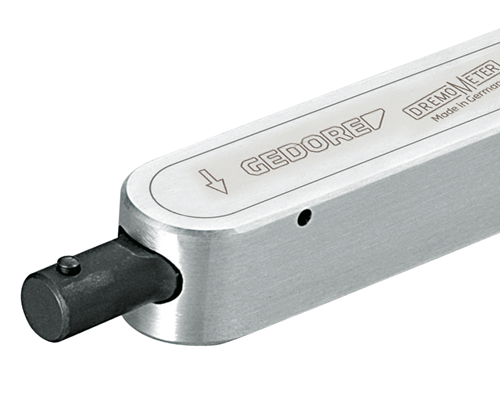

7704260 - 25-120 Nm DREMOMETER Torque Wrench with Calibration Certificate
7704260 - 25-120 Nm DREMOMETER Torque Wrench with Calibration Certificate
SKU: SKU: 7704260
Couldn't load pickup availability
Description:
Introducing a precision tool designed for optimal performance, this torque wrench complies with DIN EN ISO 6789-2:2017 Type II Class A standards and includes a traceable test certificate Boasting a calibrated maximum permissible deviation of just +/- 3%, it surpasses the required standard of +/- 4% for greater accuracy
Crafted from a sturdy aluminium alloy, this lightweight torque wrench is both robust and practical for workshop use.
Its design allows for versatile access, accommodating front access for open-end fittings and side access for reversible ratchet and socket applications
For accurate force application, it is crucial to grip the handle in the center; avoid using an extension tube unless using model DXZ, which has been specifically calibrated for such use Ensure compatibility with end fittings featuring standard depth gauges to maintain accuracy, and always refer to the depth gauges on the certification.
For best results, utilize original GEDORE accessories
With a wide drive cross-section, this tool transfers maximum torque efficiently while minimizing wear through reduced forces within the lever mechanism The forged lever chain is crafted from our proprietary quality forge, ensuring high precision even under continuous heavy use, along with prolonged tool life and cycles
Experience simple and effective operation with quick and secure torque tightening.
The adjustable button, conveniently secured at the end of the handle to prevent loss, allows for easy customization This tool comes with a certificate adhering to DIN EN ISO 6789-2:2017, traceable to national standards via our in-house DAkkS laboratory.
Features and Benefits:
•Classified according to DIN EN ISO 6789-2:2017 Type II Class A with traceable test certificate.
•Housing made of an aluminum alloy for lightweight yet robust design.
•Access possible from front or side depending on application.
•Maximum precision with a permissible deviation of +/- 3 %.
•Large drive cross-section for maximum torque transfer.
•Extremely low wear due to reduced forces in the lever mechanism.
•Long life cycles and tool lives.
•Easy operation with fast and safe torque tightening.
•Attractive adjusting button secured against loss.
•Assembly.
•Series assembly.
•Production.
•Maintenance and repair.
Specifications:
| Total width [mm] | 35 mm |
| Total height [mm] | 30 mm |
| Total length [mm] | 489 mm |
| Distance between housing and centre of drive [mm] | 16 mm |
| Drive type/drive | Drive pin |
| Tightening direction | Left and right |
| Trigger mechanism | Short path triggering |
| Receptacle width [mm] | 16 mm |
| Torque (max.) [lbf·ft] | 90 lbf·ft |
| Torque (min.) [lbf·ft] | 18 lbf·ft |
| Torque (max.) [Nm] | 120 Nm |
| Torque (min.) [Nm] | 25 Nm |
| Torque wrench type | BZ |
| Fixed setting | No |
| Lever length drive side [mm] | 38 mm |
| Lever length handle side [mm] | 451 mm |
| Calibration length | 411.5 mm |
| Width of head 1 [mm] | 35.0 mm |
| Head height 1 [mm] | 30 mm |
| Material | Aluminum alloy |
| Precision +/- | +/- 3 % |
| Test certificate | DIN EN ISO 6789-2:2017 |
| Compliance | compliant |
| Safety | Locking pin |
| Graduation [lbf·ft] | 5 lbf·ft |
| Scale division [Nm] | 5 Nm |
| Depth gauge [metric] | 32.0 mm |
