7695410 - Precision 1" Torque Wrench 750-2000 Nm with Certificate
7695410 - Precision 1" Torque Wrench 750-2000 Nm with Certificate
SKU: SKU: 7695410
Couldn't load pickup availability

Description:
Experience precision and reliability with the DREMOMETER EL 1" Torque Wrench, designed for controlled tightening from 750 to 2000 Nm With the code number 7695410, this wrench meets the stringent standards outlined in DIN EN ISO 6789-2:2017 Type II Class A It comes with a traceable test certificate and boasts an impressive calibration with a maximum allowable deviation of just +/- 3%, exceeding the standard's +/- 4% requirement for enhanced accuracy.
Crafted from a durable yet lightweight aluminum alloy, this tool is built to withstand the demands of industrial environments while remaining user-friendly The automatic short-path actuation mechanism not only provides tactile feedback but also emits an audible signal for easy operation The torque wrench features a single scale graduated in 50 Nm increments, promoting exceptional control and safety during use, whether you're utilizing both hands or positioning it away from the handle.
Further enhancing its durability, the wrench includes a forged lever chain designed to minimize wear while ensuring maximum precision during intense continuous use Adjustments are made simple and secure thanks to a dependable adjusting button, making this tool an essential addition to any workshop.
Features and Benefits:
•Classified according to DIN EN ISO 6789-2:2017 Type II Class A.
•Traceable test certificate included.
•Calibrated with maximum deviation of +/- 3 %.
•Lightweight aluminum alloy housing.
•Automatic short-path actuation with tactile and audible signals.
•Single scale graduation of 50 Nm.
•User-friendly design.
•Low wear due to reduced forces in lever mechanism.
•High precision during extreme use.
•Easy adjustment mechanism.
•Assembly.
•Maintenance.
•Repair.

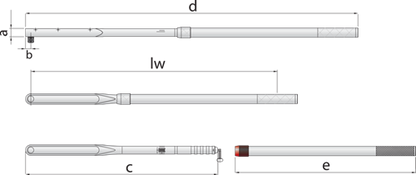

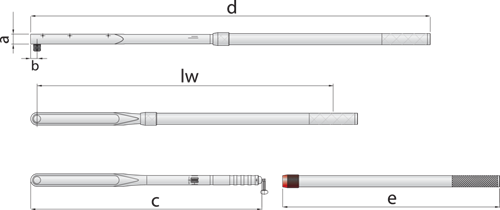

Specifications:
| Total width [mm] | 60 mm |
| Total height [mm] | 71 mm |
| Total length [mm] | 932 mm |
| Net weight [kg] | 12 kg |
| Drive type/drive | Double square rigid |
| Drive square inch | 1" |
| Tightening direction | Left and right |
| Torque (max.) [Nm] | 2000 Nm |
| Torque (min.) [Nm] | 750 Nm |
| Torque wrench type | EL |
| Calibration length | 2213 mm |
| Width of head 1 [mm] | 60.0 mm |
| Head height 1 [mm] | 40 mm |
| Length extension tube | 925 mm |
| Length of slip-on tube 2 | 745 mm |
| Material | Aluminum alloy |
| Precision +/- | +/- 3 % |
| Test certificate | DIN EN ISO 6789-2:2017 |
| Compliance | compliant |
| Scale division [Nm] | 50 Nm |
