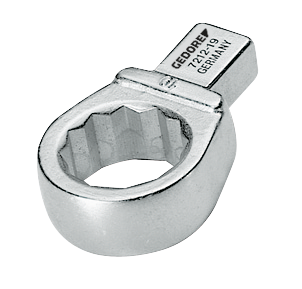

7693040 - Forged Rectangular Ring End Fitting, 22mm, Chromium Vanadium Steel
7693040 - Forged Rectangular Ring End Fitting, 22mm, Chromium Vanadium Steel
SKU: SKU: 7693040
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing our forged rectangular ring end fitting, expertly crafted to tackle tough assembly challenges Made from resilient chromium vanadium steel, this fitting boasts a sleek matte chrome-plated surface for added durability It includes a reliable locking pin to ensure secure operation and is designed for easy replacement, making it a versatile option for a wide range of applications.
Features and Benefits:
•Forged construction for durability.
•Made from chromium vanadium steel.
•Matt chrome-plated for corrosion resistance.
•Incorporates a locking pin for security.
•Easily replaceable design.

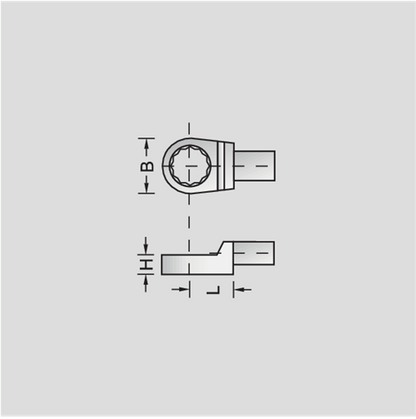

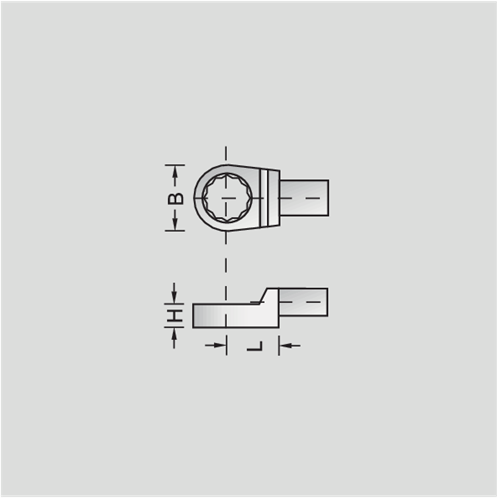

Specifications:
| Total width [mm] | 34.5 mm |
| Total height [mm] | 15 mm |
| Total length [mm] | 50.8 mm |
| Net weight [kg] | 0.05 kg |
| Drive connector rectangular | 9 x 12 mm |
| Width of head 1 [mm] | 34.5 mm |
| Width of head 2 [mm] | 34.5 mm |
| Head height 1 [mm] | 15 mm |
| Head height 2 [mm] | 15 mm |
| Material | Chrome-vanadium steel |
| Compliance | compliant |
| Width across flats 1 [mm] | 22 |
| Depth gauge [metric] | 17.5 mm |
