7691850 - 3/4" Torque Wrench, 155-760 Nm, High Precision Calibration
7691850 - 3/4" Torque Wrench, 155-760 Nm, High Precision Calibration
SKU: SKU: 7691850
Couldn't load pickup availability
Description:

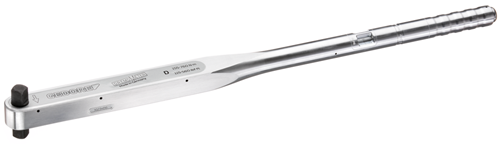

Introducing the DREMOMETER DL Torque Wrench, meticulously engineered for precise screw tightening within a torque range of 155 to 760 Nm (or 115 to 560 lbf·ft) This versatile tool is ideal for various industrial applications and adheres to the DIN EN ISO 6789-2:2017 Type II Class A standards, complete with a traceable test certificate
Precision is key with this wrench, boasting a maximum allowable deviation of just +/- 3%, exceeding the typical requirement of +/- 4%.

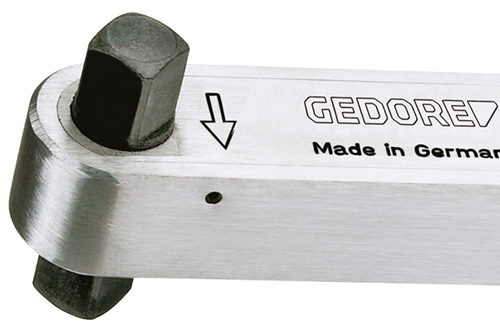

It features a robust 3/4" square drive equipped with a secure pin-locking mechanism for added reliability The automatic short-actuation function provides tactile feedback and an audible alert, enhancing usability
For effortless reading, the dual-scale display is marked in 10 Nm and 10 lbf·ft increments, catering to a seamless user experience in any tightening task.
Features and Benefits:
•Lightweight yet robust due to aluminium alloy housing.
•Precise accuracy ensured by maximum permissible deviation of +/- 3 %.
•Designed for user safety with axis-aligned square drive and fulcrum.
•Minimizes wear through reduced forces in the lever mechanism.
•Long tool life cycles suitable for extreme continuous use.
•Easy to operate for safe torque tightening.
•Convenient adjustment through a secure adjusting button.
•Assembly.
•Series assembly.
•Production.
•Maintenance and repair.
Specifications:

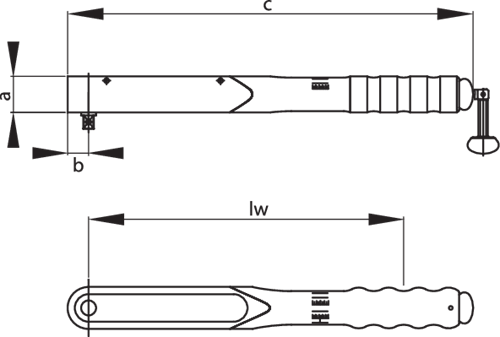

| Total width [mm] | 45 mm |
| Total height [mm] | 60 mm |
| Total length [mm] | 812 mm |
| Drive type/drive | Double square rigid |
| Drive connector square [metric] | 20 mm |
| Drive square inch | 3/4" |
| Tightening direction | Left and right |
| Trigger mechanism | Short path triggering |
| Torque (max.) [lbf·ft] | 560 lbf·ft |
| Torque (min.) [lbf·ft] | 115 lbf·ft |
| Torque (max.) [Nm] | 760 Nm |
| Torque (min.) [Nm] | 155 Nm |
| Distance housing - square drive | 22.5 mm |
| Calibration length | 719 mm |
| Width of head 1 [mm] | 45.0 mm |
| Head height 1 [mm] | 35 mm |
| Material | Aluminum alloy |
| Precision +/- | +/- 3 % |
| Test certificate | DIN EN ISO 6789-2:2017 |
| Compliance | compliant |
| Graduation [lbf·ft] | 10 lbf·ft |
