7691500 - Precision DREMOMETER D 3/4" Torque Wrench 155-760 Nm
7691500 - Precision DREMOMETER D 3/4" Torque Wrench 155-760 Nm
SKU: SKU: 7691500
Couldn't load pickup availability
Description:
Introducing the DREMOMETER D 3/4" torque wrench, expertly crafted for precise screw tightening, operating effectively within a torque range of 155 - 760 Nm (or 115 - 560 lbf·ft) This tool is ideal for diverse industrial settings and meets the rigorous standards of DIN EN ISO 6789-2:2017 Type II Class A Each wrench comes with a traceable test certificate and is calibrated for accuracy, boasting a maximum permissible deviation of just +/- 3%, surpassing the standard allowance of +/- 4%.
Experience reliable performance with this exceptional tool designed for professionals.
Features and Benefits:

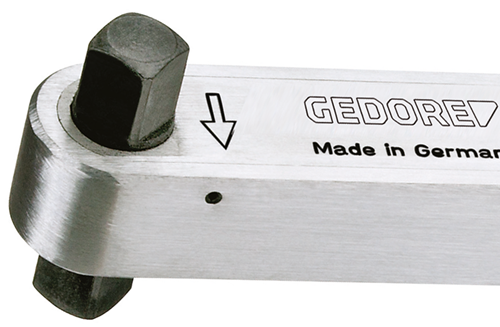

•3/4" square drive with pin-locking mechanism DIN 3120 - B 20, ISO 1174.
•Automatic short-path actuation with tactile impulse and audible signal.
•Double scale with a scale division of 10 Nm and 10 lbf·ft.
•Lightweight robust aluminum alloy housing, providing workshop-friendly use.
•User safety is enhanced through a design that maintains accuracy whether used with one or two hands.
•Minimal wear due to reduced forces in the lever mechanism.
•Forged lever chain from a quality forge for maximum precision.
•Long lifecycles and tool life.
•Fast and safe torque tightening.
•Easy adjustment with a secure adjusting button at the end of the handle.
•Assembly.
•Series assembly.
•Production.
•Maintenance and repair.
Specifications:
| Total width [mm] | 45 mm |
| Total height [mm] | 60 mm |
| Total length [mm] | 812 mm |
| Distance housing - square drive | 22.5 mm |
| Drive type/drive | Single square rigid |
| Drive connector square [metric] | 20 mm |
| Drive square inch | 3/4" |
| Tightening direction | Right |
| Standard | DIN 3120 - B 20 ISO 1174 |
| Trigger mechanism | Short path triggering |
| Torque (max.) [lbf·ft] | 560 lbf·ft |
| Torque (min.) [lbf·ft] | 115 lbf·ft |
| Torque (max.) [Nm] | 760 Nm |
| Torque (min.) [Nm] | 155 Nm |
| Fixed setting | No |
| Calibration length | 719 mm |
| Width of head 1 [mm] | 45.0 mm |
| Head height 1 [mm] | 35 mm |
| Material | Aluminum alloy |
| Precision +/- | +/- 3 % |
| Test certificate | DIN EN ISO 6789-2:2017 |
| Compliance | compliant |
| Graduation [lbf·ft] | 10 lbf·ft |
