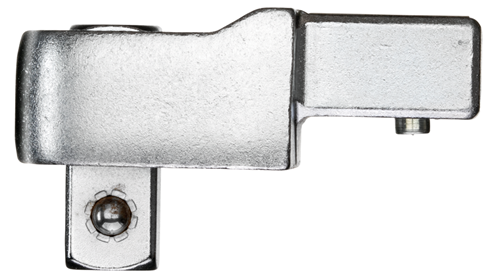

7688200 - Chromium Vanadium Steel Assembly Tool with Locking Pin
7688200 - Chromium Vanadium Steel Assembly Tool with Locking Pin
SKU: SKU: 7688200
Couldn't load pickup availability
Description:
Tackle your toughest assembly projects effortlessly with this expertly crafted tool, made from durable chromium vanadium steel and featuring a replaceable forged design The matte chrome finish gives it a sleek appearance, while a locking pin provides enhanced security during use Built to support maximum continuous loads as specified in DIN EN ISO 6789:2003, this tool is a dependable choice for a wide range of applications.
Features and Benefits:
•Forged design for durability.
•Made from chromium vanadium steel.
•Matt chrome-plated finish for enhanced protection.
•Includes a locking pin for safety.
•Complies with DIN EN ISO 6789:2003.
•Maximum load capability of 400 N·m.
Specifications:
| Total width [mm] | 40 mm |
| Net weight [kg] | 0.398 kg |
| Drive connector rectangular | 14 x 18 mm |
| Drive connector square [metric] | 20 mm |
| Drive square inch | 3/4" |
| Continuous load | 3/4" = 400 N·m |
| Width of head 1 [mm] | 40.0 mm |
| Head height 2 [mm] | 25 mm |
| Material | Chrome-vanadium steel |
| Compliance | compliant |
| Depth gauge [metric] | 25.0 mm |
