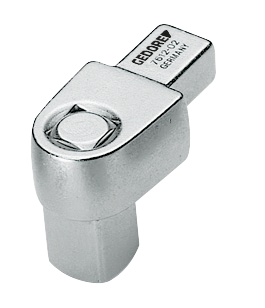

7687900 - Forged Chromium Vanadium Steel Insert with Locking Pin
7687900 - Forged Chromium Vanadium Steel Insert with Locking Pin
SKU: SKU: 7687900
Couldn't load pickup availability
Description:
Introducing a versatile tool designed for tackling complex assembly tasks with ease This item is crafted from strong forged chromium vanadium steel and features a matt chrome finish for added durability The built-in locking pin enhances its functionality, ensuring secure usage It adheres to the DIN EN ISO 6789:2003 standards, supporting a maximum continuous load, making it a reliable choice for various applications.
Features and Benefits:
•Easily replaceable.
•Forged from chromium vanadium steel.
•Matt chrome-plated for durability.
•Includes locking pin for secure use.
•Max continuous load compliant with DIN EN ISO 6789:2003 standards.
Specifications:
| Drive connector rectangular | 9 x 12 mm |
| Drive connector square [metric] | 12.5 mm |
| Drive square inch | 1/2" |
| Continuous load | 1/2"/150 N·m |
| Width of head 1 [mm] | 20.0 mm |
| Width of head 2 [mm] | 20 mm |
| Head height 2 [mm] | 14 mm |
| Material | Chrome-vanadium steel |
| Compliance | compliant |
| Depth gauge [metric] | 17.5 mm |
