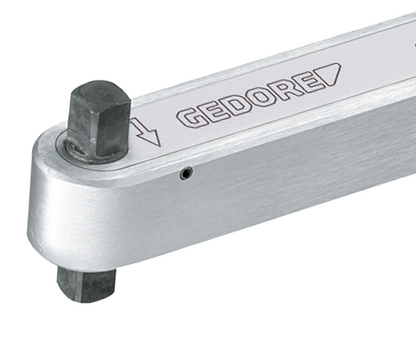

7685960 - 1/2" Torque Wrench 60-300 Nm with Certificate and Precision
7685960 - 1/2" Torque Wrench 60-300 Nm with Certificate and Precision
SKU: SKU: 7685960
Couldn't load pickup availability
Description:
Experience precision with this high-performance torque wrench, designed for controlled screw tightening between 60 - 300 Nm (45 - 220 lbf·ft) Suitable for nearly all industrial manufacturing applications, it meets the standards set by DIN EN ISO 6789-2:2017 Type II Class A This tool includes a traceable test certificate and is calibrated to an impressive maximum permissible deviation of +/- 3%, exceeding the standard requirement of +/- 4%.
With an automatic short-path actuation, this wrench offers a tactile impulse and audible signal, ensuring maximum accuracy even under extreme continuous usage Enjoy effortless and secure torque tightening with its user-friendly operation.
Features and Benefits:
•Lightweight yet robust, made of an aluminium alloy.
•No inaccuracies whether used with both hands or held away from the handle.
•Both the square drive and fulcrum are on an axis which ensures a high degree of user safety.
•Extremely low wear attributable to reduced forces in a lever mechanism.
•Forged lever chain from quality forge.
•Long life cycles and tool lives.
•Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle.
•Assembly.
•Series assembly.
•Production.
•Maintenance and repair.
Specifications:

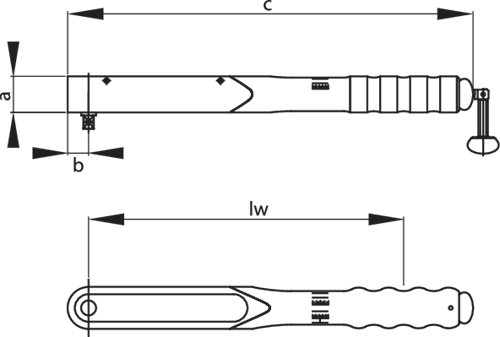

| Total width [mm] | 35 mm |
| Total height [mm] | 48 mm |
| Total length [mm] | 617 mm |
| Net weight [kg] | 2.3 kg |
| Distance housing - square drive | 17.5 mm |
| Drive type/drive | Double square rigid |
| Drive connector square [metric] | 12.5 mm |
| Drive square inch | 1/2" |
| Tightening direction | Left and right |
| Standard | DIN 3120 - B 20 ISO 1174 |
| Trigger mechanism | Short path triggering |
| Torque (max.) [lbf·ft] | 220 lbf·ft |
| Torque (min.) [lbf·ft] | 45 lbf·ft |
| Torque (max.) [Nm] | 300 Nm |
| Torque (min.) [Nm] | 60 Nm |
| Torque wrench type | CL |
| Calibration length | 529 mm |
| Width of head 1 [mm] | 35.0 mm |
| Head height 1 [mm] | 30 mm |
| Material | Aluminum alloy |
| Precision +/- | +/- 3 % |
| Test certificate | DIN EN ISO 6789-2:2017 |
| Compliance | compliant |
| Graduation [lbf·ft] | 5 lbf·ft |
| Scale division [Nm] | 5 Nm |
