7685290 - Matt Chrome 9x12mm Socket Spanner with Locking Pin
7685290 - Matt Chrome 9x12mm Socket Spanner with Locking Pin
SKU: SKU: 7685290
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Tackle challenging assembly tasks with ease using this tool, crafted from durable chromium vanadium steel It boasts a sleek matt chrome-plated finish and features a convenient locking pin for added security during use Perfect for ensuring reliable performance in all your assembly needs.

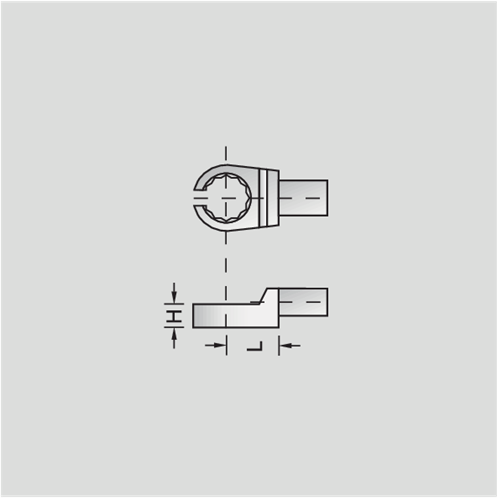

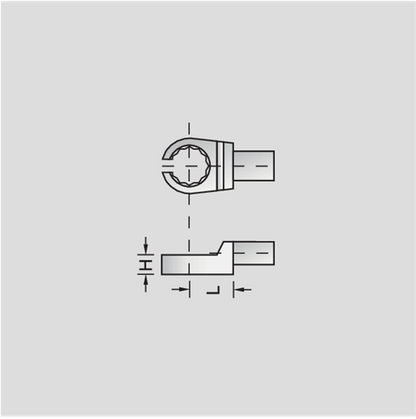

Specifications:
| Total width [mm] | 22 mm |
| Total height [mm] | 14.5 mm |
| Total length [mm] | 42.3 mm |
| Drive connector rectangular | 9 x 12 mm |
| Width of head 1 [mm] | 22.0 mm |
| Width of head 2 [mm] | 21 mm |
| Head height 1 [mm] | 14.5 mm |
| Head height 2 [mm] | 12 mm |
| Material | Chrome-vanadium steel |
| Opening width Slot | 7.3 mm |
| Compliance | compliant |
| Width across flats 1 [mm] | 10 |
| Depth gauge [metric] | 17.5 mm |
