7683590 - DREMOMETER BC Torque Wrench 40-200 Nm, Aluminum Alloy, Calibrated Precision
7683590 - DREMOMETER BC Torque Wrench 40-200 Nm, Aluminum Alloy, Calibrated Precision
SKU: SKU: 7683590
Couldn't load pickup availability
Description:
Introducing the DREMOMETER BC torque wrench, expertly designed for precise screw tightening across a range of 40 - 200 Nm (30 - 150 lbf·ft), making it ideal for various industrial applications This tool meets the DIN EN ISO 6789-2:2017 Type II Class A standards and includes a traceable test certificate for reliability
Engineered with a maximum permissible deviation of just +/- 3%, this wrench surpasses the standard accuracy requirement of +/- 4%.
It boasts a 1/2" square drive equipped with a ball locking mechanism, along with automatic short-path actuation that provides both tactile feedback and an audible signal With a dual scale marked in increments of 5 Nm and 5 lbf·ft, achieving the right torque has never been easier
Crafted from a lightweight yet durable aluminum alloy, this torque wrench ensures user safety and comfort, allowing for exceptional precision under challenging conditions.
Experience the combination of functionality and reliability with the DREMOMETER BC torque wrench.
Features and Benefits:
•Classified according to DIN EN ISO 6789-2:2017 Type II Class A with traceable test certificate.
•Calibrated to a maximum permissible deviation of +/- 3 %.

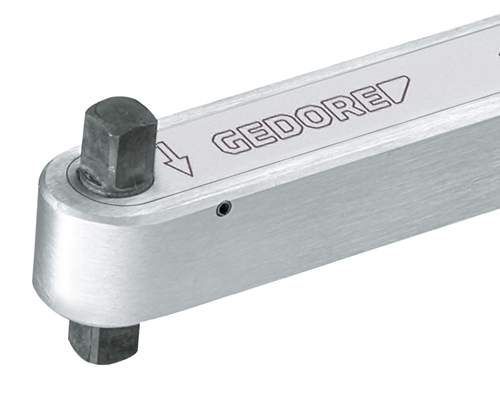

•1/2" square drive with ball locking device as per DIN 3120 - A 12.5, ISO 1174.
•Automatic short-path actuation with tactile impulse and audible signal.
•Dual scale graduated in 5 Nm and 5 lbf·ft.
•Lightweight and robust aluminum alloy housing.
•High degree of user safety with integrated lever mechanism.
•Easy adjustment with attractive button secured against loss.
•Controlled screw tightening in industrial manufacturing areas.
•Assembly.
•Production.
•Maintenance and repair.

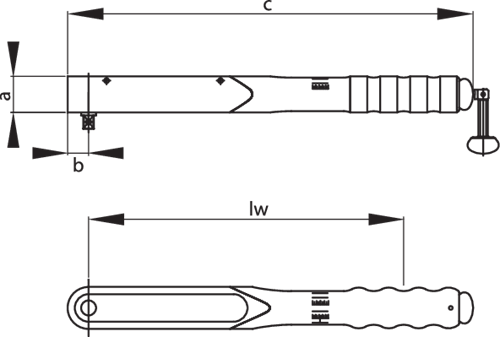

Specifications:
| Total width [mm] | 35 mm |
| Total height [mm] | 30 mm |
| Total length [mm] | 551 mm |
| Drive type | Single square rigid |
| Drive connector square [metric] | 12.5 mm |
| Drive square inch | 1/2" |
| Tightening direction | Right |
| Calibration length | 463 mm |
| Width of head 1 [mm] | 35.0 mm |
| Head height 1 [mm] | 30 mm |
| Material | Aluminum alloy |
| Precision +/- | +/- 3 % |
| Test certificate | DIN EN ISO 6789-2:2017 |
| Compliance | compliant |
| Torque (max.) [lbf·ft] | 150 lbf·ft |
| Torque (min.) [lbf·ft] | 30 lbf·ft |
| Torque (max.) [Nm] | 200 Nm |
| Torque (min.) [Nm] | 40 Nm |
| Graduation [lbf·ft] | 5 lbf·ft |
| Scale division [Nm] | 5 Nm |
