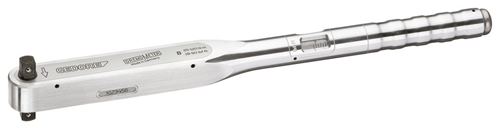

7683400 - Precision 1/2" Torque Wrench 25-120 Nm with Calibration
7683400 - Precision 1/2" Torque Wrench 25-120 Nm with Calibration
SKU: SKU: 7683400
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Experience precision with this torque wrench, expertly crafted for controlled tightening of screws within 25 - 120 Nm (18 - 90 lbf·ft) Ideal for various industrial applications, it adheres to DIN EN ISO 6789-2:2017 Type II Class A standards and comes with a traceable test certificate Calibrated to deliver a maximum allowable deviation of +/- 3%, it surpasses the typical +/- 4% precision requirement.
Featuring a 1/2" square drive secured with a ball locking mechanism, this tool also boasts automatic short-path actuation, providing both tactile feedback and an audible signal for user convenience.
Features and Benefits:
•Lightweight and robust construction with a high-quality aluminum alloy housing.
•User-friendly design with both square drive and fulcrum on the same axis for improved safety.
•Extremely low wear due to reduced forces in the lever mechanism for maximum precision.
•Fast and safe torque tightening with easy operation.
•Secure adjusting button at the handle end for easy adjustment.
•Dual scale with clear graduation for accurate measurements.
•Assembly.
•Series assembly.
•Production.
•Maintenance and repair.
Specifications:

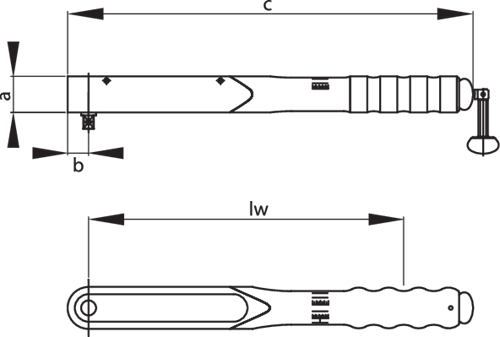

| Total width [mm] | 35 mm |
| Total height [mm] | 55 mm |
| Total length [mm] | 462 mm |

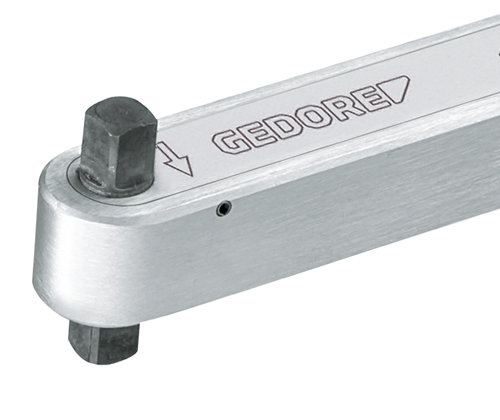

| Drive type/drive | Double square rigid |
| Drive connector square [metric] | 12.5 mm |
| Drive square inch | 1/2" |
| Torque (max.) [lbf·ft] | 90 lbf·ft |
| Torque (min.) [lbf·ft] | 18 lbf·ft |
| Torque (max.) [Nm] | 120 Nm |
| Torque (min.) [Nm] | 25 Nm |
| Calibration length | 373 mm |
| Width of head 1 [mm] | 35.0 mm |
| Head height 1 [mm] | 30 mm |
| Material | Aluminum alloy |
| Precision +/- | +/- 3 % |
| Test certificate | DIN EN ISO 6789-02:2017 |
| Compliance | compliant |
| Graduation [lbf·ft] | 5 lbf·ft |
| Scale division [Nm] | 5 Nm |
