7683320 - 1/2" Torque Wrench 25-120 Nm for Industrial Use
7683320 - 1/2" Torque Wrench 25-120 Nm for Industrial Use
SKU: SKU: 7683320
Couldn't load pickup availability
Description:
Achieve precise screw tightening with this tool, offering control from 25 to 120 Nm (18 to 90 lbf·ft) It's suitable for a wide variety of industrial manufacturing settings, ensuring reliability and accuracy in your work.
Features and Benefits:
•Classified according to DIN EN ISO 6789-2:2017 Type II Class A, incl. traceable test certificate, calibrated to a maximum permissible deviation of +/- 3 % and thus more precise than the +/- 4 % required by the standard.
•1/2" square drive with ball locking device as per DIN 3120 - A 12.5, ISO 1174.
•Automatic short-path actuation with tactile impulse and audible signal.
•Dual scale with a scale graduation of 5 Nm and 5 lbf·ft.
•With push button release.
•Lightweight and robust - housing made of a high-quality aluminium alloy.
•No inaccuracies whether used with both hands or held away from the handle.
•Both the square drive and fulcrum are on an axis which ensures a high degree of user safety.
•Can be extended to reduce the user's working load.
•Extremely low wear attributable to reduced forces in a lever mechanism.
•Maximum precision even when subjected to extreme continuous use.
•Long life cycles and tool lives.
•Easy operation - fast and safe torque tightening.
•Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle.

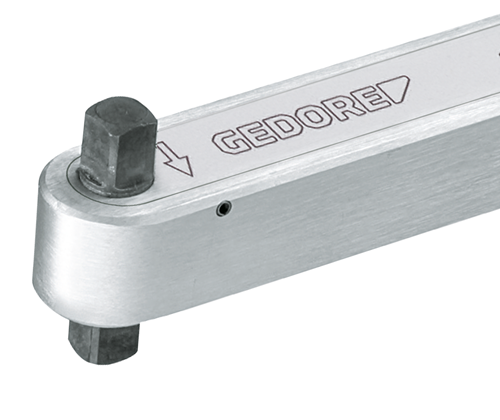

•Single- and double-square drive for controlled bi-directional tightening.
•Assembly.
•Series assembly.
•Production.
•Maintenance and repair.
Specifications:

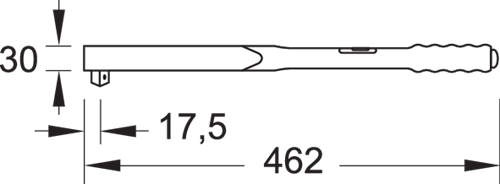

| Total width [mm] | 35 mm |
| Total height [mm] | 48 mm |
| Total length [mm] | 462 mm |
| Distance housing - square drive | 17.5 mm |
| Drive type/drive | Single square rigid |
| Drive connector square [metric] | 12.5 mm |
| Drive square inch | 1/2" |
| Tightening direction | Right |
| Standard | DIN 3120 - A 12.5 ISO 1174 |
| Trigger mechanism | Short path triggering |
| Torque (max.) [lbf·ft] | 90 lbf·ft |
| Torque (min.) [lbf·ft] | 18 lbf·ft |
| Torque (max.) [Nm] | 120 Nm |
| Torque (min.) [Nm] | 25 Nm |
| Torque wrench type | B |
| Fixed setting | No |
| Calibration length | 373 mm |
| Width of head 1 [mm] | 35.0 mm |
| Head height 1 [mm] | 30 mm |
| Material | Aluminum alloy |
| Precision +/- | +/- 3 % |
| Test certificate | DIN EN ISO 6789-02:2017 |
| Compliance | compliant |
| Graduation [lbf·ft] | 5 lbf·ft |
| Scale division [Nm] | 5 Nm |
