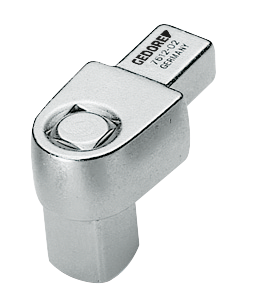

7679800 - Forged Chromium Vanadium Square Insert, 3/8" for Assembly Challenges
7679800 - Forged Chromium Vanadium Square Insert, 3/8" for Assembly Challenges
SKU: SKU: 7679800
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Tackle complex assembly tasks with ease using this durable tool Crafted from high-quality chromium vanadium steel and featuring a sleek matt chrome finish, it ensures longevity and reliability The inclusion of a locking pin enhances safety during use This tool is designed to handle a maximum continuous load, adhering to the DIN EN ISO 6789:2003 standards, making it a robust choice for any project Easy to replace, it’s perfect for anyone looking for dependable performance in challenging situations.
Features and Benefits:
•Easily replaceable.
•Forged.
•Made from chromium vanadium steel.
•Matt chrome-plated.
•Includes locking pin.
•Max. continuous load according to standards.
Specifications:
| Total width [mm] | 20 mm |
| Drive connector rectangular | 9 x 12 mm |
| Drive connector square [metric] | 10 mm |
| Drive square inch | 3/8" |
| Continuous load | 3/8"/135 N·m |
| Width of head 1 [mm] | 20.0 mm |
| Width of head 2 [mm] | 20 mm |
| Head height 2 [mm] | 14 mm |
| Material | Chrome-vanadium steel |
| Compliance | compliant |
| Depth gauge [metric] | 17.5 mm |
| Contents (Qty of pieces) | 1 |
